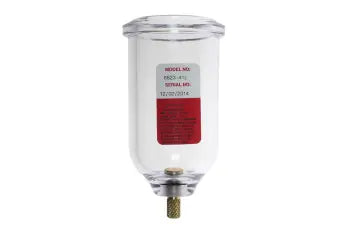

8823-41L by Coilhose | Heavy Duty Series Repair Kit | Filter | 1/4" & 3/8" Bowl | Polycarbonate

8823-41L by Coilhose | Heavy Duty Series Repair Kit | Filter | 1/4" & 3/8" Bowl | Polycarbonate

Save $20.85 Save $20.85
$52.12
$52.12 - $52.12
$52.12
$31.27
$31.27 - $31.27
$31.27
Coilhose Pneumatics - Filters, Regulators & Lubricators - Heavy Duty Series - Repair Kits
Specifications for Variant SKU: 8823-41L Coilhose
Warning:
  • Although polycarbonate bowls are capable of withstanding extreme physical abuse, they are susceptible to damage and may possibly burst when subjected to some cleaning products and synthetic oils, particularly phosphate esters. Should there be any questions regarding their compatibility with your applications, consult the factory or use a metal bowl.

Part Number Description Includes
Filter
8823-41L 1/4" & 3/8" Polycarbonate Bowl with Drain Cock -
8824-41L 1/2" Polycarbonate Bowl with Drain Cock -
8828-41L 3/4" & 1" Polycarbonate Bowl with Drain Cock -
Regulator
8800-53 1/4" & 3/8" Repair Kit Stem, Seat, Retainer Assembly (Part #8803-56)
Back Cap (Part #8803-3)
Back Cap O-Ring (Part #8803-21)
Back Cap Spring (Part #8804-18)
Diaphragm Assembly (Part #1483-59A)
8800-54 1/2" Repair Kit Stem, Seat, Retainer Assembly (Part #8804-56)
Back Cap (Part #8804-3)
Back Cap O-Ring (Part #8804-21)
Back Cap Spring (Part #8804-18)
Diaphragm Assembly (Part #1484-59A)
8800-56 3/4" & 1" Repair Kit Stem, Seat, Retainer Assembly (Part #8806-56)
Back Cap (Part #8806-3)
Back Cap O-Ring (Part #8806-21)
Back Cap Spring (Part #8806-18)
Diaphragm Assembly (Part #1488-59A)
Lubricator
8843-41L 1/4" & 3/8" Polycarbonate Bowl -
8844-41L 1/2" Polycarbonate Bowl -
8848-41L 3/4" & 1" Polycarbonate Bowl -
