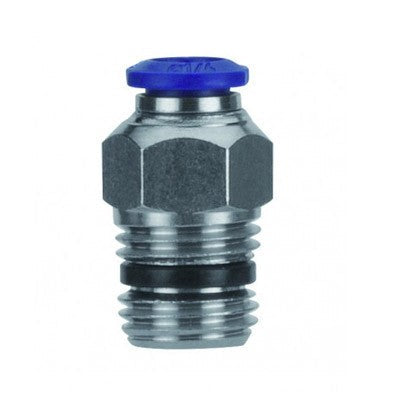

88000-06-04 AIGNEP | 87 / 88 Series | Straight Male | 3/8" Tube x 1/4" Male NPTF | Pack of 10
88000-06-04 by AIGNEP | 87 / 88 Series | 3/8" Tube x 1/4" Male NPTF | Straight | Pack of 10
88000-06-04 AIGNEP | 87 / 88 Series | Straight Male | 3/8" Tube x 1/4" Male NPTF | Pack of 10

88000-06-04 by AIGNEP | 87 / 88 Series | 3/8" Tube x 1/4" Male NPTF | Straight | Pack of 10

Save $14.77 Save $14.77
$36.92
$36.92 - $36.92
$36.92
$22.15
$22.15 - $22.15
$22.15

Package Quantity: 10 ea

Specifications for Variant SKU: 88000-06-04 AIGNEP | 10 |
Series: 87 / 88 Series
Shape (Orientation): Straight
Ends Configuration: 3/8in Push-to-Connect, 1/4in Male NPTF
Material(s): Nickel Plated Brass
Seal Material(s): NBR

Straight Male

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon,Polyethylene,Polyurethane,Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR
Thread Type: NPTF

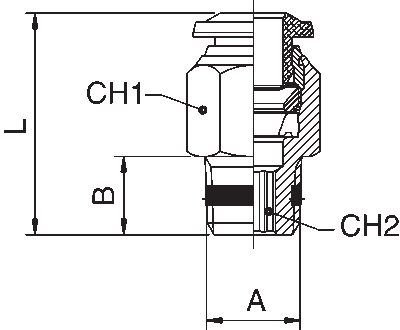

Product Number Tube A NPTF Thread Type B (IN) B L CH1 CH2
88000-02-02 1/8" 1/8" NPTF 0.335" 8.5 mm 19.5 mm 11 mm 2 mm
88000-02-04 1/8" 1/4" NPTF 0.512" 13 mm 24.5 mm 14 mm 2 mm
88000-53-02 5/32" 1/8" NPTF 0.335" 8.5 mm 21 mm 11 mm 3 mm
88000-53-04 5/32" 1/4" NPTF 0.512" 13 mm 25 mm 14 mm 3 mm
88000-04-02 1/4" 1/8" NPTF 0.335" 8.5 mm 26 mm 13 mm 4 mm
88000-04-04 1/4" 1/4" NPTF 0.512" 13 mm 27 mm 14 mm 4 mm
88000-04-06 1/4" 3/8" NPTF 0.512" 13 mm 29 mm 18 mm 4 mm
88000-05-02 5/16" 1/8" NPTF 0.335" 8.5 mm 27 mm 14 mm 5 mm
88000-05-04 5/16" 1/4" NPTF 0.512" 13 mm 27.5 mm 14 mm 6 mm
88000-05-06 5/16" 3/8" NPTF 0.512" 13 mm 27.5 mm 18 mm 6 mm
88000-06-02 3/8" 1/8" NPTF 0.335" 8.5 mm 32 mm 17 mm 5 mm
88000-06-04 3/8" 1/4" NPTF 0.512" 13 mm 33.5 mm 17 mm 7 mm
88000-06-06 3/8" 3/8" NPTF 0.512" 13 mm 33.5 mm 18 mm 7 mm
88000-06-08 3/8" 1/2" NPTF 0.669" 17 mm 33.5 mm 22 mm 7 mm
88000-08-04 1/2" 1/4" NPTF 0.512" 13 mm 39 mm 20 mm 5 mm
88000-08-06 1/2" 3/8" NPTF 0.512" 13 mm 36 mm 20 mm 9 mm
88000-08-08 1/2" 1/2" NPTF 0.669" 17 mm 40 mm 22 mm 9 mm
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
