88000-53-04 AIGNEP | 87 / 88 Series | Straight Male | 5/32" Tube x 1/4" Male NPTF | Pack of 10

88000-53-04 by AIGNEP | 87 / 88 Series | 5/32" Tube x 1/4" Male NPTF | Straight | Pack of 10

Save $16.50

$37.57

$37.57 - $37.57

$37.57

$21.07

$21.07 - $21.07

$21.07

Package Quantity: 10 ea

Specifications for Variant SKU: 88000-53-04 AIGNEP \| 10 \|
Series:	87 / 88 Series
Shape (Orientation):	Straight
Ends Configuration:	5/32in Push-to-Connect, 1/4in Male NPTF
Material(s):	Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber

Straight Male

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon,Polyethylene,Polyurethane,Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR
Thread Type: NPTF

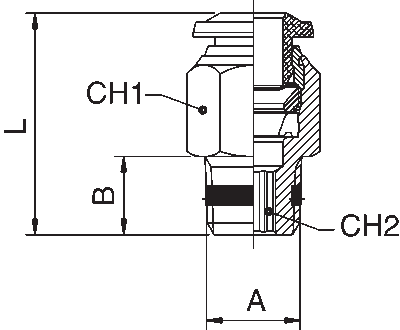

Product Number	Tube	A NPTF	Thread Type	B (IN)	B	L	CH1	CH2
88000-02-02	1/8"	1/8"	NPTF	0.335"	8.5 mm	19.5 mm	11 mm	2 mm
88000-02-04	1/8"	1/4"	NPTF	0.512"	13 mm	24.5 mm	14 mm	2 mm
88000-53-02	5/32"	1/8"	NPTF	0.335"	8.5 mm	21 mm	11 mm	3 mm
88000-53-04	5/32"	1/4"	NPTF	0.512"	13 mm	25 mm	14 mm	3 mm
88000-04-02	1/4"	1/8"	NPTF	0.335"	8.5 mm	26 mm	13 mm	4 mm
88000-04-04	1/4"	1/4"	NPTF	0.512"	13 mm	27 mm	14 mm	4 mm
88000-04-06	1/4"	3/8"	NPTF	0.512"	13 mm	29 mm	18 mm	4 mm
88000-05-02	5/16"	1/8"	NPTF	0.335"	8.5 mm	27 mm	14 mm	5 mm
88000-05-04	5/16"	1/4"	NPTF	0.512"	13 mm	27.5 mm	14 mm	6 mm
88000-05-06	5/16"	3/8"	NPTF	0.512"	13 mm	27.5 mm	18 mm	6 mm
88000-06-02	3/8"	1/8"	NPTF	0.335"	8.5 mm	32 mm	17 mm	5 mm
88000-06-04	3/8"	1/4"	NPTF	0.512"	13 mm	33.5 mm	17 mm	7 mm
88000-06-06	3/8"	3/8"	NPTF	0.512"	13 mm	33.5 mm	18 mm	7 mm
88000-06-08	3/8"	1/2"	NPTF	0.669"	17 mm	33.5 mm	22 mm	7 mm
88000-08-04	1/2"	1/4"	NPTF	0.512"	13 mm	39 mm	20 mm	5 mm
88000-08-06	1/2"	3/8"	NPTF	0.512"	13 mm	36 mm	20 mm	9 mm
88000-08-08	1/2"	1/2"	NPTF	0.669"	17 mm	40 mm	22 mm	9 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
