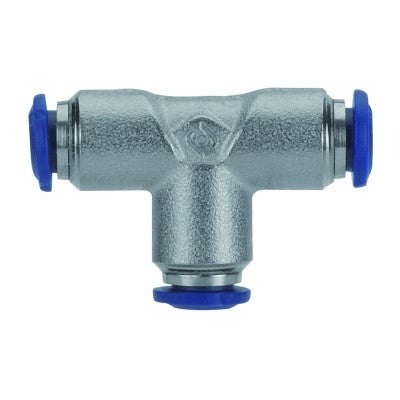

88230-02 AIGNEP | 87 / 88 Series | Union Tee | 1/8" Tube | Pack of 10
88230-02 by AIGNEP | 87 / 88 Series | Union | 1/8" Tube | Tee | Pack of 10
88230-02 AIGNEP | 87 / 88 Series | Union Tee | 1/8" Tube | Pack of 10

88230-02 by AIGNEP | 87 / 88 Series | Union | 1/8" Tube | Tee | Pack of 10

Save $20.92 Save $20.92
$59.72
$59.72 - $59.72
$59.72
$38.80
$38.80 - $38.80
$38.80

Package Quantity: 10 ea

Specifications for Variant SKU: 88230-02 AIGNEP | 10 |
Series: 87 / 88 Series
Shape (Orientation): Tee
Ends Configuration: 1/8in Push-to-Connect, 1/8in Push-to-Connect, 1/8in Push-to-Connect, Some Ends Match
Material(s): Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber

Union Tee

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR 70

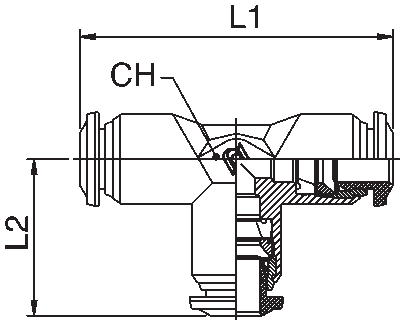

Product Number Tube L1 L2 CH
88230-02 1/8" 33 mm 17 mm 9 mm
88230-53 5/32" 34 mm 17 mm 9 mm
88230-04 1/4" 42 mm 21 mm 11 mm
88230-05 5/16" 45 mm 22.5 mm 13 mm
88230-06 3/8" 53 mm 26.5 mm 16 mm
88230-08 1/2" 61 mm 30.5 mm 19 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
