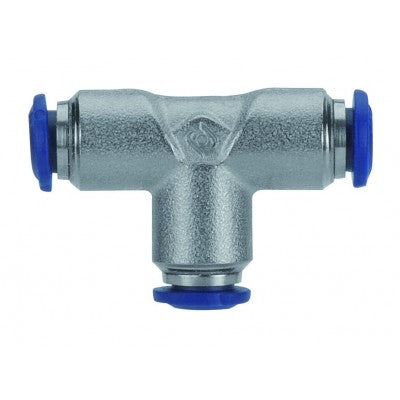

88230-53 AIGNEP | 87 / 88 Series | Union Tee | 5/32" Tube | Pack of 10

88230-53 by AIGNEP | 87 / 88 Series | Union | 5/32" Tube | Tee | Pack of 10

Save $19.95

$49.87

$49.87 - $49.87

$49.87

$29.92

$29.92 - $29.92

$29.92

Package Quantity: 10 ea

Quantity

Specifications for Variant SKU: 88230-53 AIGNEP \| 10 \|
Series:	87 / 88 Series
Shape (Orientation):	Tee
Ends Configuration:	5/32in Push-to-Connect, 5/32in Push-to-Connect, 5/32in Push-to-Connect, Some Ends Match
Material(s):	Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber

Union Tee

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR 70

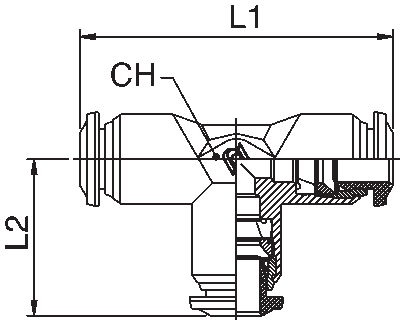

Tube	L1	L2	CH
88230-02	1/8"	33 mm	17 mm	9 mm
88230-53	5/32"	34 mm	17 mm	9 mm
88230-04	1/4"	42 mm	21 mm	11 mm
88230-05	5/16"	45 mm	22.5 mm	13 mm
88230-06	3/8"	53 mm	26.5 mm	16 mm
88230-08	1/2"	61 mm	30.5 mm	19 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
