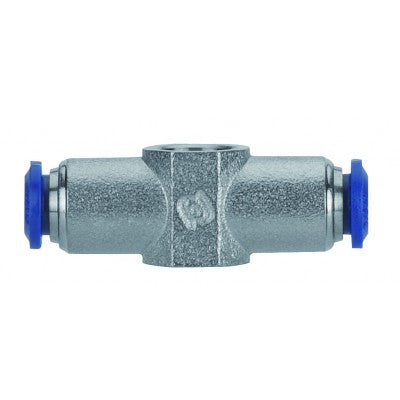

88510-04-04 AIGNEP | 87 / 88 Series | Double Banjo Body | 1/4" Tube x 1/4" | Pack of 10

88510-04-04 by AIGNEP | 87 / 88 Series | Double Banjo Body | 1/4" Tube x 1/4" | Pack of 10

Save $23.44

$72.37

$72.37 - $72.37

$72.37

$48.93

$48.93 - $48.93

$48.93

Package Quantity: 10 ea

Specifications for Variant SKU: 88510-04-04 AIGNEP \| 10 \|
Series:	87 / 88 Series
Shape (Orientation):	Banjo
Ends Configuration:	1/4in Push-to-Connect, 1/4in Female Banjo
Material(s):	Nickel Plated Brass

Double Banjo Body

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176 ° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed air, Vacuum, Water, Steam
Body: Nickel Plated Brass

Tube	A	B (IN)	B	L	CH
88510-53-32	5/32"	10-32	0.492"	12.5 mm	38 mm	-
88510-04-02	1/4"	1/8"	0.591"	15 mm	44 mm	14 mm
88510-04-04	1/4"	1/4"	0.669"	17 mm	50 mm	18 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
