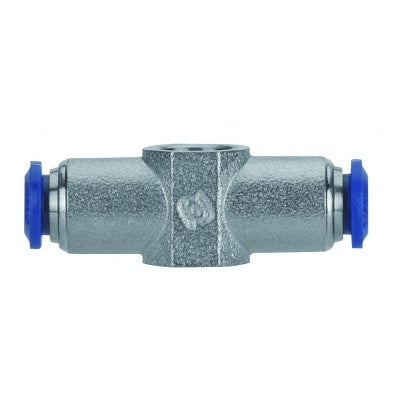

88510-53-32 AIGNEP | 87 / 88 Series | Double Banjo Body | 5/32" Tube x 10/32 | Pack of 10
88510-53-32 by AIGNEP | 87 / 88 Series | Double Banjo Body | 5/32" Tube x 10/32 | Pack of 10
88510-53-32 AIGNEP | 87 / 88 Series | Double Banjo Body | 5/32" Tube x 10/32 | Pack of 10

88510-53-32 by AIGNEP | 87 / 88 Series | Double Banjo Body | 5/32" Tube x 10/32 | Pack of 10

Save $21.68 Save $21.68
$63.55
$63.55 - $63.55
$63.55
$41.87
$41.87 - $41.87
$41.87

Package Quantity: 10 ea

Specifications for Variant SKU: 88510-53-32 AIGNEP | 10 |
Series: 87 / 88 Series
Shape (Orientation): Straight
Material(s): Nickel-Plated Brass

Double Banjo Body

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176 ° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed air, Vacuum, Water, Steam
Body: Nickel Plated Brass

Product Number Tube A B (IN) B L CH
88510-53-32 5/32" 10-32 0.492" 12.5 mm 38 mm -
88510-04-02 1/4" 1/8" 0.591" 15 mm 44 mm 14 mm
88510-04-04 1/4" 1/4" 0.669" 17 mm 50 mm 18 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
