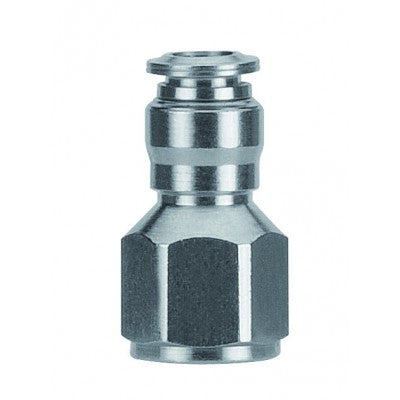

89030-06-06 AIGNEP | 89 Series | Straight Female Metal Release Collet | 3/8" Tube x 3/8" Female NPTF | Pack of 10

89030-06-06 by AIGNEP | 89 Series | Female Metal Release Collet | 3/8" Tube x 3/8" Female NPTF | Straight | Pack of 10

Save $20.66

$58.39

$58.39 - $58.39

$58.39

$37.73

$37.73 - $37.73

$37.73

Package Quantity: 10 ea

Specifications for Variant SKU: 89030-06-06 AIGNEP \| 10 \|
Series:	89 Series
Shape (Orientation):	Straight
Ends Configuration:	3/8in Push-to-Connect, 3/8in Female NPTF
Material(s):	Nickel Plated Brass
Seal Material(s):	NBR 70

Straight Female Metallic

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR 70
Thread Type: SWIFTFIT

Product Number	Tube	A NPTF	B (IN)	B	L	CH
89030-02-02	1/8"	1/8"	0.374"	9.5 mm	24 mm	13 mm
89030-02-04	1/8"	1/4"	0.531"	13.5 mm	29 mm	16 mm
89030-53-02	5/32"	1/8"	0.374"	9.5 mm	24.5 mm	13 mm
89030-53-04	5/32"	1/4"	0.531"	13.5 mm	29.5 mm	16 mm
89030-04-02	1/4"	1/8"	0.374"	9.5 mm	26 mm	13 mm
89030-04-04	1/4"	1/4"	0.531"	13.5 mm	31 mm	16 mm
89030-06-04	3/8"	1/4"	0.531"	13.5 mm	34.5 mm	18 mm
89030-06-06	3/8"	3/8"	0.531"	13.5 mm	34.5 mm	20 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
