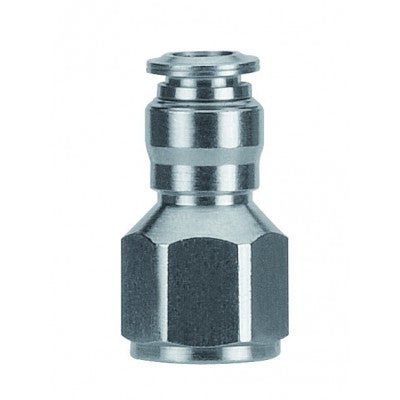

89030-53-02 by AIGNEP | 89 Series | Female Metal Release Collet | 5/32" Tube x 1/8" Female NPTF | Straight | Pack of 10

Save $13.01 Save $13.01
Original price $32.52
Original price $32.52 - Original price $32.52
Original price $32.52
Current price $19.51
$19.51 - $19.51
Current price $19.51

Package Quantity: 10 ea

Specifications for Variant SKU: 89030-53-02 AIGNEP | 10 |
Series: 89 Series
Shape (Orientation): Straight
Ends Configuration: 5/32in Push-to-Connect, 1/8in Female NPTF
Material(s): Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber

Straight Female Metallic

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR 70
Thread Type: SWIFTFIT

Product Number Tube A NPTF B (IN) B L CH
89030-02-02 1/8" 1/8" 0.374" 9.5 mm 24 mm 13 mm
89030-02-04 1/8" 1/4" 0.531" 13.5 mm 29 mm 16 mm
89030-53-02 5/32" 1/8" 0.374" 9.5 mm 24.5 mm 13 mm
89030-53-04 5/32" 1/4" 0.531" 13.5 mm 29.5 mm 16 mm
89030-04-02 1/4" 1/8" 0.374" 9.5 mm 26 mm 13 mm
89030-04-04 1/4" 1/4" 0.531" 13.5 mm 31 mm 16 mm
89030-06-04 3/8" 1/4" 0.531" 13.5 mm 34.5 mm 18 mm
89030-06-06 3/8" 3/8" 0.531" 13.5 mm 34.5 mm 20 mm
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
