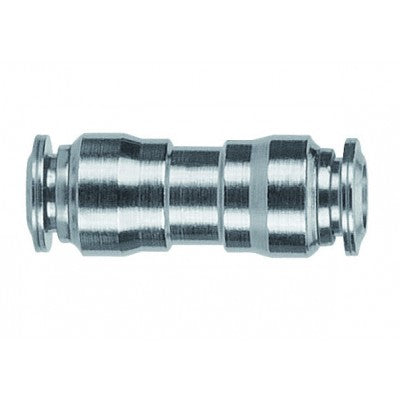

89040-05 by AIGNEP | 89 Series | Union Metal Release Collet | 5/16" Tube | Pack of 10

Save $15.35 Save $15.35
Original price $38.38
Original price $38.38 - Original price $38.38
Original price $38.38
Current price $23.03
$23.03 - $23.03
Current price $23.03

Package Quantity: 10 ea

Specifications for Variant SKU: 89040-05 AIGNEP | 10 |
Series: 89 Series
Shape (Orientation): Straight
Ends Configuration: 5/16in Push-to-Connect, 5/16in Push-to-Connect, Some Ends Match
Material(s): Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber

Union Metallic

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR 70

Product Number Tube B (IN) B L
89040-02 1/8" 0.334" 8.5 mm 26 mm
89040-04-53 1/4" x 5/32" 0.492" 12.5 mm 33 mm
89040-04 1/4" 0.492" 12.5 mm 33 mm
89040-05 5/16" 0.570" 14.5 mm 36 mm
89040-06 3/8" 0.688" 17.5 mm 41 mm
89040-06-08 3/8" x 1/2" 0.807" 20.5 mm 47 mm
89040-08 1/2" 0.807" 20.5 mm 47 mm
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
