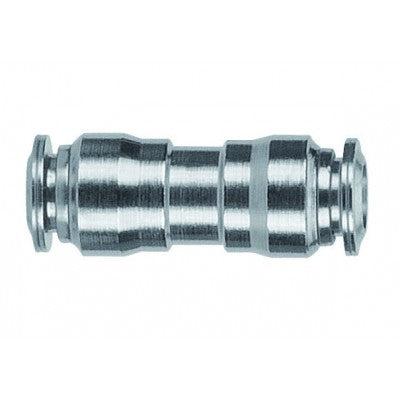

89040-06 AIGNEP | 89 Series | Union Metal Release Collet | 3/8" Tube | Pack of 10

89040-06 by AIGNEP | 89 Series | Union Metal Release Collet | 3/8" Tube | Pack of 10

Save $22.29

$55.73

$55.73 - $55.73

$55.73

$33.44

$33.44 - $33.44

$33.44

Package Quantity: 10 ea

Specifications for Variant SKU: 89040-06 AIGNEP \| 10 \|
Series:	89 Series
Shape (Orientation):	Straight
Ends Configuration:	3/8in Push-to-Connect, 3/8in Push-to-Connect, Some Ends Match
Material(s):	Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber

Union Metallic

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR 70

Product Number	Tube	B (IN)	B	L
89040-02	1/8"	0.334"	8.5 mm	26 mm
89040-04-53	1/4" x 5/32"	0.492"	12.5 mm	33 mm
89040-04	1/4"	0.492"	12.5 mm	33 mm
89040-05	5/16"	0.570"	14.5 mm	36 mm
89040-06	3/8"	0.688"	17.5 mm	41 mm
89040-06-08	3/8" x 1/2"	0.807"	20.5 mm	47 mm
89040-08	1/2"	0.807"	20.5 mm	47 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
