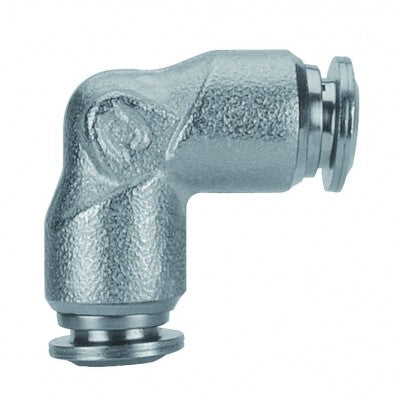

89130-04 AIGNEP | 89 Series | Union 90° Elbow Metal Release Collet | 1/4" Tube | Pack of 10

89130-04 by AIGNEP | 89 Series | Union Metal Release Collet | 1/4" Tube | 90° Elbow | Pack of 10

Save $15.70

$49.17

$49.17 - $49.17

$49.17

$33.47

$33.47 - $33.47

$33.47

Package Quantity: 10 EA

Specifications for Variant SKU: 89130-04 AIGNEP \| 10 \|
Series:	89 Series
Shape (Orientation):	90 Degree
Ends Configuration:	1/4in Push-to-Connect, 1/4in Push-to-Connect, Some Ends Match
Material(s):	Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber

Union 90° Elbow Metallic

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR 70

Tube	L	CH
89130-02	1/8"	16.5 mm	9 mm
89130-53	5/32"	17 mm	9 mm
89130-04	1/4"	21 mm	11 mm
89130-05	5/16"	22.5 mm	13 mm
89130-06	3/8"	26 mm	16 mm
89130-08	1/2"	30.5 mm	19 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
