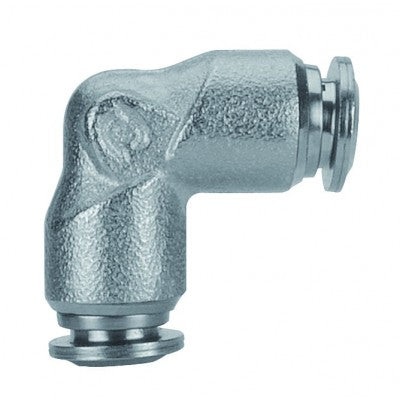

89130-53 AIGNEP | 89 Series | Union 90° Elbow Metal Release Collet | 5/32" Tube | Pack of 10
89130-53 by AIGNEP | 89 Series | Union Metal Release Collet | 5/32" Tube | 90° Elbow | Pack of 10
89130-53 AIGNEP | 89 Series | Union 90° Elbow Metal Release Collet | 5/32" Tube | Pack of 10

89130-53 by AIGNEP | 89 Series | Union Metal Release Collet | 5/32" Tube | 90° Elbow | Pack of 10

Save $15.45 Save $15.45
$38.62
$38.62 - $38.62
$38.62
$23.17
$23.17 - $23.17
$23.17

Package Quantity: 10 EA

Specifications for Variant SKU: 89130-53 AIGNEP | 10 |
Series: 89 Series
Shape (Orientation): 90 Degree
Ends Configuration: 5/32in Push-to-Connect, 5/32in Push-to-Connect, Some Ends Match
Material(s): Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber

Union 90° Elbow Metallic

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR 70

Product Number Tube L CH
89130-02 1/8" 16.5 mm 9 mm
89130-53 5/32" 17 mm 9 mm
89130-04 1/4" 21 mm 11 mm
89130-05 5/16" 22.5 mm 13 mm
89130-06 3/8" 26 mm 16 mm
89130-08 1/2" 30.5 mm 19 mm
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
