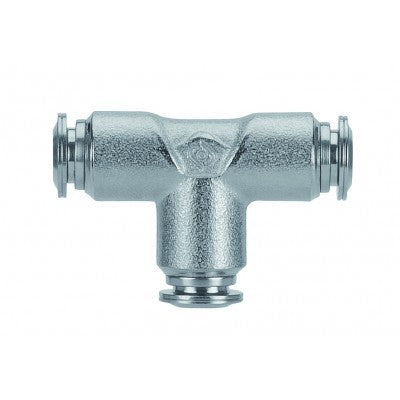

89230-04 AIGNEP | 89 Series | Union Tee Metal Release Collet | 1/4" Tube | Pack of 10
89230-04 by AIGNEP | 89 Series | Union Metal Release Collet | 1/4" Tube | Tee | Pack of 10
89230-04 AIGNEP | 89 Series | Union Tee Metal Release Collet | 1/4" Tube | Pack of 10

89230-04 by AIGNEP | 89 Series | Union Metal Release Collet | 1/4" Tube | Tee | Pack of 10

Save $17.72 Save $17.72
$59.32
$59.32 - $59.32
$59.32
$41.60
$41.60 - $41.60
$41.60

Package Quantity: 10 EA

Specifications for Variant SKU: 89230-04 AIGNEP | 10 |
Series: 89 Series
Shape (Orientation): Tee
Ends Configuration: 1/4in Push-to-Connect, 1/4in Push-to-Connect, Some Ends Match
Material(s): Nickel-Plated Brass

Union Tee Metallic

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass

Product Number Tube L1 L2 CH D
89230-02 1/8" 33 mm 17 mm 9 mm 10 mm
89230-04 1/4" 42 mm 21 mm 11 mm 12.5 mm
89230-05 5/16" 45 mm 22.5 mm 13 mm 14 mm
89230-06 3/8" 53 mm 26.5 mm 16 mm 17.5 mm
89230-08 1/2" 61 mm 30.5 mm 19 mm 21.5 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
