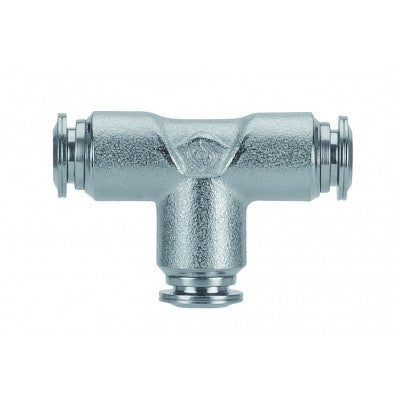

89230-06 AIGNEP | 89 Series | Union Tee Metal Release Collet | 3/8" Tube | Pack of 10

89230-06 by AIGNEP | 89 Series | Union Metal Release Collet | 3/8" Tube | Tee | Pack of 10

Save $18.57

$91.90

$91.90 - $91.90

$91.90

$73.33

$73.33 - $73.33

$73.33

Package Quantity: 10 EA

Specifications for Variant SKU: 89230-06 AIGNEP \| 10 \|
Series:	89 Series
Shape (Orientation):	Tee
Ends Configuration:	3/8in Push-to-Connect, 3/8in Push-to-Connect, Some Ends Match
Material(s):	Nickel-Plated Brass

Union Tee Metallic

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass

Tube	L1	L2	CH	D
89230-02	1/8"	33 mm	17 mm	9 mm	10 mm
89230-04	1/4"	42 mm	21 mm	11 mm	12.5 mm
89230-05	5/16"	45 mm	22.5 mm	13 mm	14 mm
89230-06	3/8"	53 mm	26.5 mm	16 mm	17.5 mm
89230-08	1/2"	61 mm	30.5 mm	19 mm	21.5 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
