89953-04-02 AIGNEP | Functional (Flow Controls) Series | Flow Control Metal Release Collet | 1/4" Tube x 1/8" Swift-Fit Male | Flow Out Screw Adjustment
89953-04-02 by AIGNEP | Functional (Flow Controls) Series | Flow Control Metal Release Collet | 1/4" Tube x 1/8" Swift-Fit Male | Flow Out Screw Adjustment
89953-04-02 AIGNEP | Functional (Flow Controls) Series | Flow Control Metal Release Collet | 1/4" Tube x 1/8" Swift-Fit Male | Flow Out Screw Adjustment

89953-04-02 by AIGNEP | Functional (Flow Controls) Series | Flow Control Metal Release Collet | 1/4" Tube x 1/8" Swift-Fit Male | Flow Out Screw Adjustment

Save $7.71 Save $7.71
$19.47
$19.47 - $19.47
$19.47
$11.76
$11.76 - $11.76
$11.76
Specifications for Variant SKU: 89953-04-02 AIGNEP
Series: Functional (Flow Controls) Series
Shape (Orientation): 90 Degree
Ends Configuration: 1/4in Push-to-Connect, 1/8in Male Swift-Fit
Material(s): Nickel Plated Brass
Seal Material(s): NBR 70

Inch Tube Flow Control (OUT)

Pressure Rating: Vacuum - 290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air
Body: Nickel-plated Brass
Thread Seal: NBR 70
Thread Type: SWIFTFIT

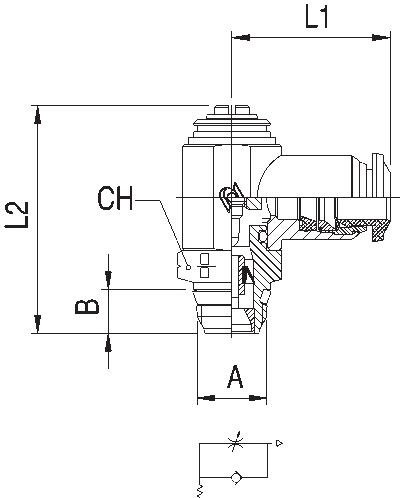

Product Number Tube A B (IN) B L1 L2 CH Code
89953-02-32 1/8" 10-32 0.157" 4 mm 19 mm 24 mm 8 mm C
89953-53-32 5/32" 10-32 0.157" 4 mm 19 mm 24 mm 8 mm C
89953-53-02 5/32" 1/8" 0.217" 5.5 mm 21 mm 30.5 mm 14 mm C
89953-04-02 1/4" 1/8" 0.217" 5.5 mm 22 mm 30.5 mm 14 mm C
89953-04-04 1/4" 1/4" 0.276" 7 mm 25 mm 36 mm 17 mm C

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
