89953-53-02 AIGNEP | Functional (Flow Controls) Series | Flow Control Metal Release Collet | 5/32" Tube x 1/8" Swift-Fit Male | Flow Out Screw Adjustment

89953-53-02 by AIGNEP | Functional (Flow Controls) Series | Flow Control Metal Release Collet | 5/32" Tube x 1/8" Swift-Fit Male | Flow Out Screw Adjustment

Name: 89953-53-02 by AIGNEP | Functional (Flow Controls) Series | Flow Control Metal Release Collet | 5/32" Tube x 1/8" Swift-Fit Male | Flow Out Screw Adjustment
Brand: AIGNEP
SKU: 89953-53-02 AIGNEP
Price: 11.76 USD
Availability: InStock

Save $6.99

$18.75

$18.75 - $18.75

$18.75

$11.76

$11.76 - $11.76

$11.76

Specifications for Variant SKU: 89953-53-02 AIGNEP
Series:	Functional (Flow Controls) Series
Shape (Orientation):	90 Degree
Ends Configuration:	5/32in Push-to-Connect, 1/8in Male Swift-Fit
Material(s):	Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber

Inch Tube Flow Control (OUT)

Pressure Rating: Vacuum - 290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air
Body: Nickel-plated Brass
Thread Seal: NBR 70
Thread Type: SWIFTFIT

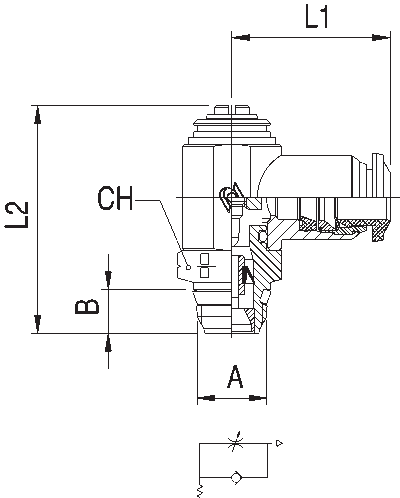

Product Number	Tube	A	B (IN)	B	L1	L2	CH	Code
89953-02-32	1/8"	10-32	0.157"	4 mm	19 mm	24 mm	8 mm	C
89953-53-32	5/32"	10-32	0.157"	4 mm	19 mm	24 mm	8 mm	C
89953-53-02	5/32"	1/8"	0.217"	5.5 mm	21 mm	30.5 mm	14 mm	C
89953-04-02	1/4"	1/8"	0.217"	5.5 mm	22 mm	30.5 mm	14 mm	C
89953-04-04	1/4"	1/4"	0.276"	7 mm	25 mm	36 mm	17 mm	C

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
