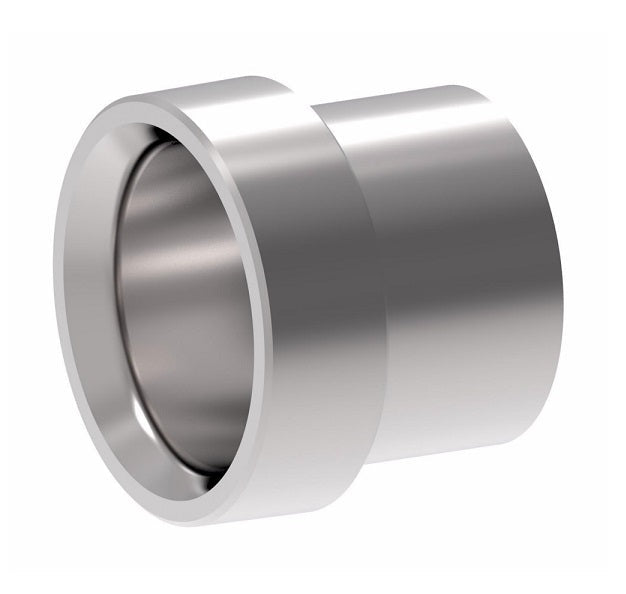

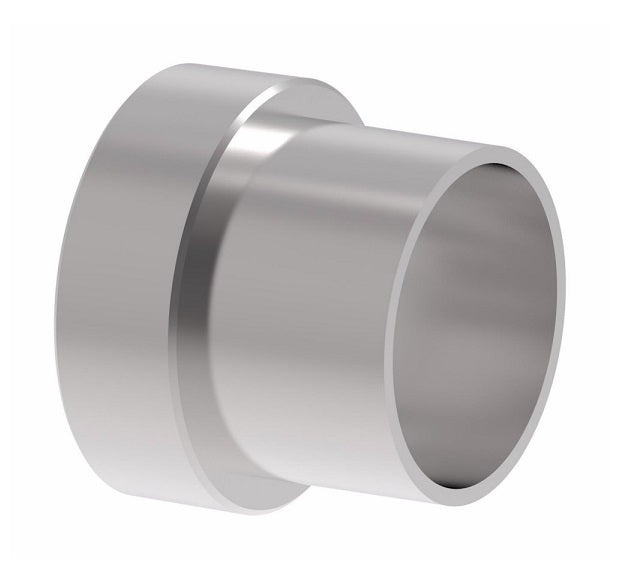

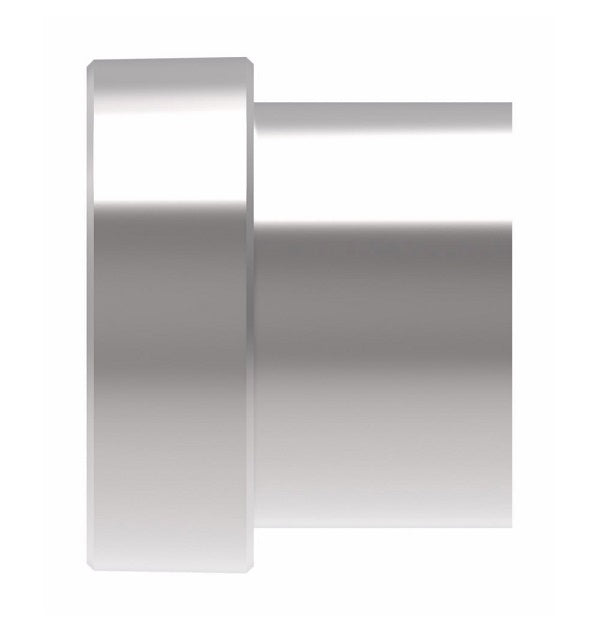

900605-16S Aeroquip by Danfoss | Versil-Flare 37° JIC Flared Sleeve Adapter | -16 Size | Steel
900605-16S Aeroquip by Danfoss | Versil-Flare 37° JIC Flared Sleeve Adapter | -16 Size | Steel
900605-16S Aeroquip by Danfoss | Versil-Flare 37° JIC Flared Sleeve Adapter | -16 Size | Steel
900605-16S Aeroquip by Danfoss | Versil-Flare 37° JIC Flared Sleeve Adapter | -16 Size | Steel

900605-16S Aeroquip by Danfoss | Versil-Flare 37° JIC Flared Sleeve Adapter | -16 Size | Steel

$1.66 - $1.66
$1.66
$1.66 - $1.66
$1.66
Specifications:
  • Ref. SAE 070115
Notes:
  • Use with 1290 short nut only.
Steel
Part Number 		Stainless Steel
Part Number		 Tube O.D. A
900605-2S - - -
900605-3S - 0.19" 0.34"
900605-4S 259-900605-4 0.25" 0.41"
900605-5S - 0.31" 0.44"
900605-6S 259-900605-6 0.38" 0.50"
900605-8S 259-900605-8 0.50" 0.56"
900605-10S 259-900605-10 0.63" 0.66"
900605-12S 259-900605-12 0.75" 0.69"
900605-14S - 0.88" 0.76"
900605-16S 259-900605-16 1.00" 0.78"
900605-20S 259-900605-20 1.25" 0.91"
900605-24S - 1.50" 1.12"
900605-32S - 2.00" 1.19"
Specifications for Variant SKU: 900605-16S Danfoss
Shape (Orientation): No Orientation
Material(s): Steel

Aeroquip® by Danfoss
Versil-Flare 37° JIC Flared Sleeve Adapter

(Formerly Eaton Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
