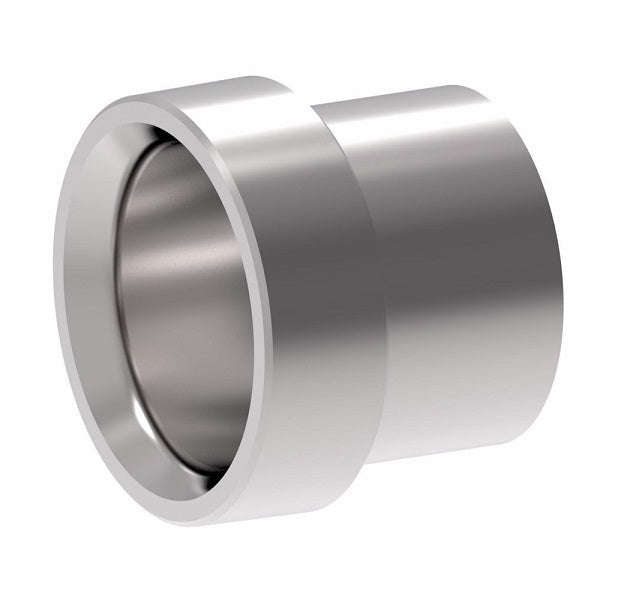

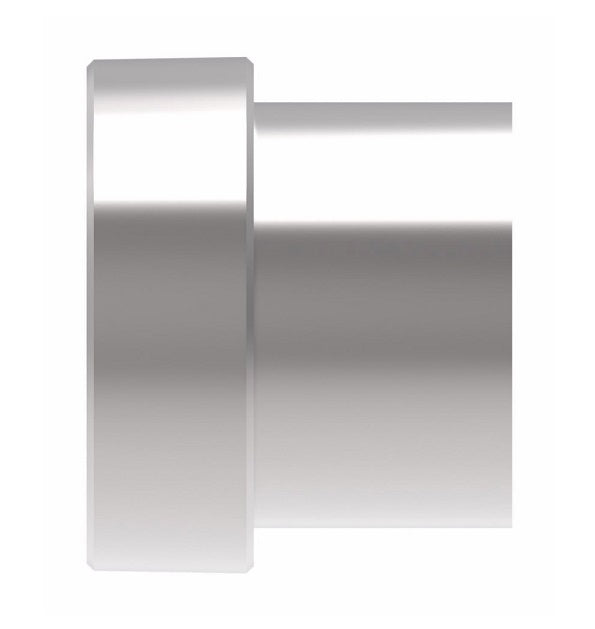

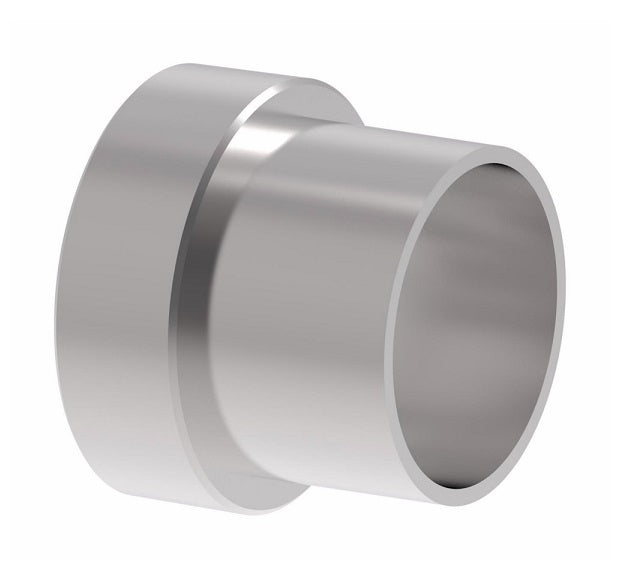

900605-24S Aeroquip by Danfoss | Versil-Flare 37° JIC Flared Sleeve Adapter | -24 Size | Steel
900605-24S Aeroquip by Danfoss | Versil-Flare 37° JIC Flared Sleeve Adapter | -24 Size | Steel
900605-24S Aeroquip by Danfoss | Versil-Flare 37° JIC Flared Sleeve Adapter | -24 Size | Steel
900605-24S Aeroquip by Danfoss | Versil-Flare 37° JIC Flared Sleeve Adapter | -24 Size | Steel

900605-24S Aeroquip by Danfoss | Versil-Flare 37° JIC Flared Sleeve Adapter | -24 Size | Steel

$7.97 - $7.97
$7.97
$7.97 - $7.97
$7.97

Aeroquip® by Danfoss
Versil-Flare 37° JIC Flared Sleeve Adapter

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 900605-24S Danfoss
Shape (Orientation): No Orientation
Material(s): Steel
Specifications:
  • Ref. SAE 070115
Notes:
  • Use with 1290 short nut only.
Steel
Part Number 		Stainless Steel
Part Number		 Tube O.D. A
900605-2S - - -
900605-3S - 0.19" 0.34"
900605-4S 259-900605-4 0.25" 0.41"
900605-5S - 0.31" 0.44"
900605-6S 259-900605-6 0.38" 0.50"
900605-8S 259-900605-8 0.50" 0.56"
900605-10S 259-900605-10 0.63" 0.66"
900605-12S 259-900605-12 0.75" 0.69"
900605-14S - 0.88" 0.76"
900605-16S 259-900605-16 1.00" 0.78"
900605-20S - 1.25" 0.91"
900605-24S - 1.50" 1.12"
900605-32S - 2.00" 1.19"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

Shop Parts by Danfoss (Eaton - Aeroquip)
