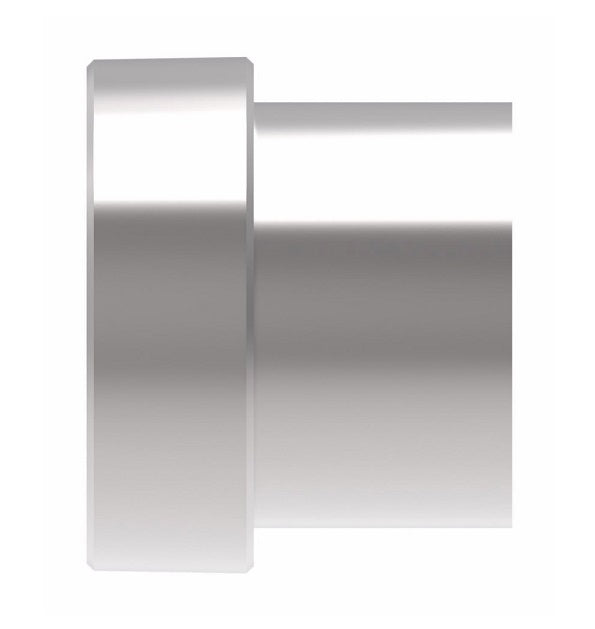

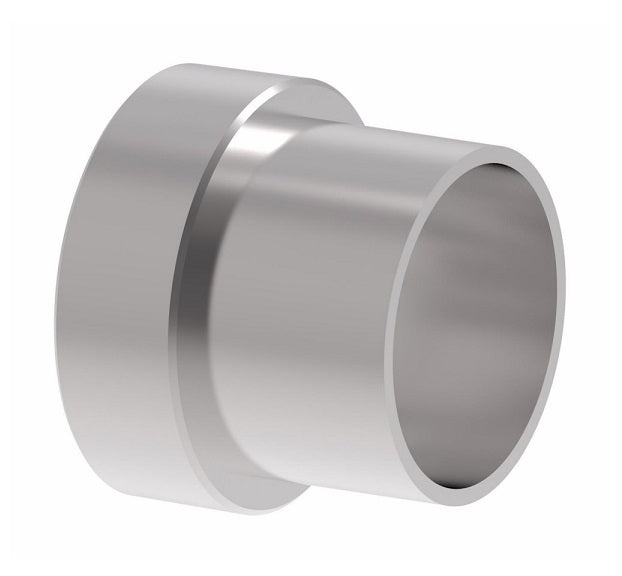

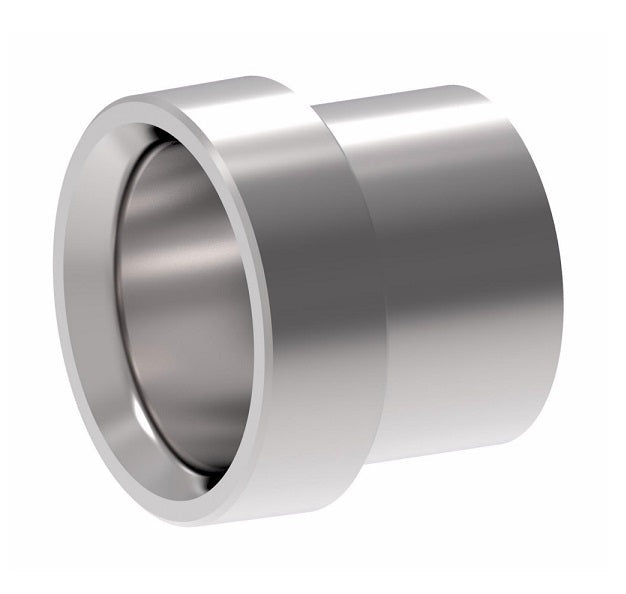

900605-3S Aeroquip by Danfoss | Versil-Flare 37° JIC Flared Sleeve Adapter | -03 Size | Steel

900605-3S Aeroquip by Danfoss | Versil-Flare 37° JIC Flared Sleeve Adapter | -03 Size | Steel

Name: 900605-3S Aeroquip by Danfoss | Versil-Flare 37° JIC Flared Sleeve Adapter | -03 Size | Steel
Brand: Danfoss/Eaton
SKU: 900605-3S Danfoss
Price: 0.75 USD
Availability: InStock

$0.75 - $0.75

$0.75

$0.75 - $0.75

$0.75

Aeroquip® by Danfoss
Versil-Flare 37° JIC Flared Sleeve Adapter

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 900605-3S Danfoss
Shape (Orientation):	No Orientation
Material(s):	Steel

Specifications:
Ref. SAE 070115
Notes:
Use with 1290 short nut only.


Steel Part Number	Stainless Steel Part Number	Tube O.D.	A
900605-2S	-	-	-
900605-3S	-	0.19"	0.34"
900605-4S	259-900605-4	0.25"	0.41"
900605-5S	-	0.31"	0.44"
900605-6S	259-900605-6	0.38"	0.50"
900605-8S	259-900605-8	0.50"	0.56"
900605-10S	259-900605-10	0.63"	0.66"
900605-12S	259-900605-12	0.75"	0.69"
900605-14S	-	0.88"	0.76"
900605-16S	259-900605-16	1.00"	0.78"
900605-20S	-	1.25"	0.91"
900605-24S	-	1.50"	1.12"
900605-32S	-	2.00"	1.19"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
