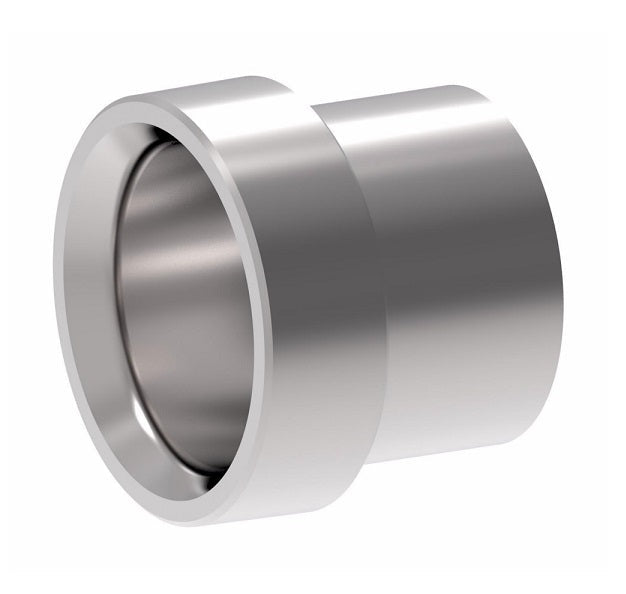

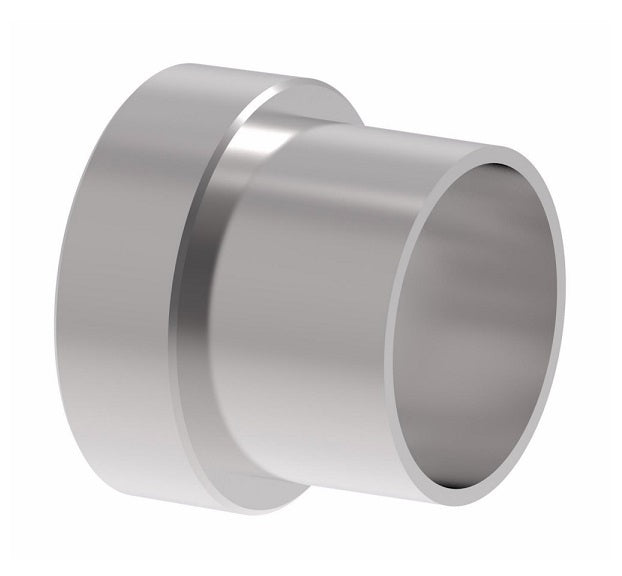

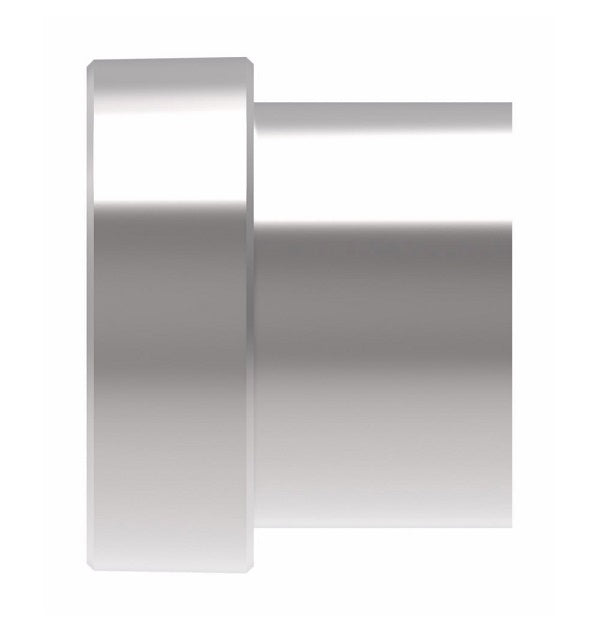

900605-4S Aeroquip by Danfoss | Versil-Flare 37° JIC Flared Sleeve Adapter | -04 Size | Steel
900605-4S Aeroquip by Danfoss | Versil-Flare 37° JIC Flared Sleeve Adapter | -04 Size | Steel
900605-4S Aeroquip by Danfoss | Versil-Flare 37° JIC Flared Sleeve Adapter | -04 Size | Steel
900605-4S Aeroquip by Danfoss | Versil-Flare 37° JIC Flared Sleeve Adapter | -04 Size | Steel

900605-4S Aeroquip by Danfoss | Versil-Flare 37° JIC Flared Sleeve Adapter | -04 Size | Steel

$0.43 - $0.43
$0.43
$0.43 - $0.43
$0.43

Aeroquip® by Danfoss
Versil-Flare 37° JIC Flared Sleeve Adapter

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 900605-4S Danfoss
Shape (Orientation): No Orientation
Material(s): Steel
Specifications:
  • Ref. SAE 070115
Notes:
  • Use with 1290 short nut only.
Steel
Part Number 		Stainless Steel
Part Number		 Tube O.D. A
900605-2S - - -
900605-3S - 0.19" 0.34"
900605-4S 259-900605-4 0.25" 0.41"
900605-5S - 0.31" 0.44"
900605-6S 259-900605-6 0.38" 0.50"
900605-8S 259-900605-8 0.50" 0.56"
900605-10S 259-900605-10 0.63" 0.66"
900605-12S 259-900605-12 0.75" 0.69"
900605-14S - 0.88" 0.76"
900605-16S 259-900605-16 1.00" 0.78"
900605-20S - 1.25" 0.91"
900605-24S - 1.50" 1.12"
900605-32S - 2.00" 1.19"
