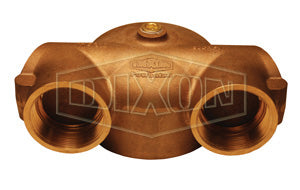

90CREV5030 Dixon Brass Reversible Concealed Angle Siamese Body - 5" Female NPT Outlet x Two 3" Female NPT Inlets (Replaces 23-391 Bodies)

90CREV5030 Dixon Brass Reversible Concealed Angle Siamese Body - 5" Female NPT Outlet x Two 3" Female NPT Inlets (Replaces 23-391 Bodies)

Save $810.91 Save $810.91
$2,027.28
$2,027.28 - $2,027.28
$2,027.28
$1,216.37
$1,216.37 - $1,216.37
$1,216.37

Dixon Fire Fittings
Reversible Concealed Angle Siamese Body

Fully reversible with a perpendicular trunnion allowing one body to be installed for top and bottom connections.
Specifications for Variant SKU: 90CREV5030 Dixon
Shape (Orientation): 90 Degree
Ends Configuration: 5in Female NPT, 3in Female NPT
Material(s): Brass
Features:
  • Maximum operating pressure: 250 PSI at 70°F (21°C).
  • 7-5/8" center.
Back Outlet
-UL listed
-Approved by New York City Board of Standards and Appeals
Part Number Outlet (Two) Inlets Weight
(Lbs.)
4025REV90 4" Female NPT 2-1/2" Female NPT 19.0000
4030REV90 4" Female NPT 3" Female NPT 16.0600
Bottom Outlet
-Replaces 23-391 bodies
Part Number Outlet (Two) Inlets Dimensions Weight
(Lbs.)
A B C
90CREV5025 5" Female NPT 2-1/2" Female NPT - - - N/A
90CREV5030 5" Female NPT 3" Female NPT 12" 9-1/2" 7-5/8" N/A
90CREV6025 6" Female NPT 2-1/2" Female NPT 12" 7-1/4" 7-5/8" N/A
90CREV6030 6" Female NPT 3" Female NPT 12" 9-1/2" 7-5/8" 19.5000
