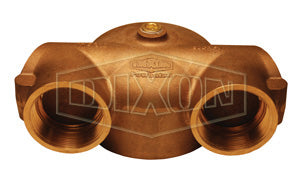

90CREV6025 Dixon Brass Reversible Concealed Angle Siamese Body - 6" Female NPT Outlet x Two 2-1/2" Female NPT Inlets (Replaces 23-391 Bodies)

90CREV6025 Dixon Brass Reversible Concealed Angle Siamese Body - 6" Female NPT Outlet x Two 2-1/2" Female NPT Inlets (Replaces 23-391 Bodies)

Save $77.26 Save $77.26
$942.11
$942.11 - $942.11
$942.11
$864.85
$864.85 - $864.85
$864.85

Dixon Fire Fittings
Reversible Concealed Angle Siamese Body

Fully reversible with a perpendicular trunnion allowing one body to be installed for top and bottom connections.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 90CREV6025 Dixon
Shape (Orientation): 90 Degree
Ends Configuration: 6in Female NPT, 2-1/2in Female NPT
Material(s): Brass
Features:
  • Maximum operating pressure: 250 PSI at 70°F (21°C).
  • 7-5/8" center.
Back Outlet
-UL listed
-Approved by New York City Board of Standards and Appeals
Part Number Outlet (Two) Inlets Weight
(Lbs.)
4025REV90 4" Female NPT 2-1/2" Female NPT 19.0000
4030REV90 4" Female NPT 3" Female NPT 16.0600
Bottom Outlet
-Replaces 23-391 bodies
Part Number Outlet (Two) Inlets Dimensions Weight
(Lbs.)
A B C
90CREV5025 5" Female NPT 2-1/2" Female NPT - - - N/A
90CREV5030 5" Female NPT 3" Female NPT 12" 9-1/2" 7-5/8" N/A
90CREV6025 6" Female NPT 2-1/2" Female NPT 12" 7-1/4" 7-5/8" N/A
90CREV6030 6" Female NPT 3" Female NPT 12" 9-1/2" 7-5/8" 19.5000
