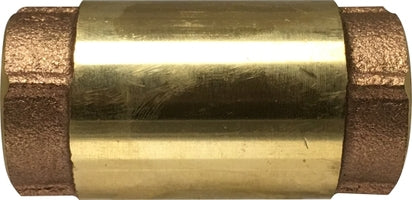

944432 (944-432) Midland Check Valve - 1" Female NPT x 1" Female NPT - Brass

944432 by Midland | Check Valve | 1" Female NPT x 1" Female NPT | Brass

Name: 944432 by Midland | Check Valve | 1" Female NPT x 1" Female NPT | Brass
Brand: Midland Industries
SKU: 944432 Midland
Price: 33.06 USD
Availability: InStock

Save $22.04

$55.10

$55.10 - $55.10

$55.10

$33.06

$33.06 - $33.06

$33.06

Midland Industries
Check Valve - Female NPT x Female NPT - Brass

For positive sealing & self-cleaning. Insures against leakage.

Inventory @ Manufacturers Warehouse: 289 Units

Specifications for Variant SKU: 944432 Midland
Shape (Orientation):	Straight
Ends Configuration:	1in Female NPT, 1in Female NPT
Material(s):	Brass

Features:
Presure rating: 200 WOG (water, oil, gas) 125 WSP (Saturated Steam) Can be used vertically or horizontally Opens & Closes with flow of media No cracking pressure Not Lead Free Temperature Range: -10°C - 110°C 14°F - 248°F
Construction:
Stainless Steel Spring Loaded Bronze Poppet Inline Lift Type - Resilient Discs - Spring Actuated - Threaded Spring in stainless steel AISI 304 Resilient washer hold/ disc in brass Forged Brass Body for 1/2"-2" Corrosion resistant material Made in Indonesia (1/4" Made in Taiwan)


Part Number	Size	Enters Pipe Size	A NPT	B	C	Weight
944428 (944-428)	1/4"	-	1/4"	1.00"	2.29"	0.24 lbs
944429 (944-429)	3/8"	-	3/8"	1.00"	2.07"	0.23 lbs
944430 (944-430)	1/2"	1-1/4"	1/2"	1.26"	2.40"	0.42 lbs
944431 (944-431)	3/4"	1-1/4"	3/4"	1.45"	2.74"	0.53 lbs
944432 (944-432)	1"	2"	1"	1.77"	3.23"	0.80 lbs
944433 (944-433)	1-1/4"	2-1/2"	1-1/4"	2.13"	3.62"	1.18 lbs
944434 (944-434)	1-1/2"	3"	1-1/2"	2.29"	4.04"	1.40 lbs
944435 (944-435)	2"	3-1/2"	2"	2.48"	5.04"	2.70 lbs
