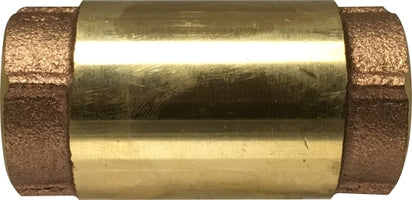

944433 (944-433) Midland Check Valve - 1-1/4" Female NPT x 1-1/4" Female NPT - Brass

944433 by Midland | Check Valve | 1-1/4" Female NPT x 1-1/4" Female NPT | Brass

Save $3.69 Save $3.69
$51.90
$51.90 - $51.90
$51.90
$48.21
$48.21 - $48.21
$48.21

Midland Industries
Check Valve - Female NPT x Female NPT - Brass

For positive sealing & self-cleaning. Insures against leakage.

Inventory @ Manufacturers Warehouse: 103 Units
Specifications for Variant SKU: 944433 Midland
Shape (Orientation): Straight
Ends Configuration: 1-1/4in Female NPT, 1-1/4in Female NPT
Material(s): Brass
Features:
  • Presure rating:
    • 200 WOG (water, oil, gas)
    • 125 WSP (Saturated Steam)
  • Can be used vertically or horizontally
  • Opens & Closes with flow of media
  • No cracking pressure
  • Not Lead Free
  • Temperature Range:
    • -10°C - 110°C
    • 14°F - 248°F
Construction:
  • Stainless Steel Spring Loaded Bronze Poppet
  • Inline Lift Type - Resilient Discs - Spring Actuated - Threaded
  • Spring in stainless steel AISI 304
  • Resilient washer hold/ disc in brass
  • Forged Brass Body for 1/2"-2"
  • Corrosion resistant material
  • Made in Indonesia (1/4" Made in Taiwan)
Part Number Size Enters Pipe Size A
NPT		 B C Weight
944428
(944-428)		 1/4" - 1/4" 1.00" 2.29" 0.24 lbs
944429
(944-429)		 3/8" - 3/8" 1.00" 2.07" 0.23 lbs
944430
(944-430)		 1/2" 1-1/4" 1/2" 1.26" 2.40" 0.42 lbs
944431
(944-431)		 3/4" 1-1/4" 3/4" 1.45" 2.74" 0.53 lbs
944432
(944-432)		 1" 2" 1" 1.77" 3.23" 0.80 lbs
944433
(944-433)		 1-1/4" 2-1/2" 1-1/4" 2.13" 3.62" 1.18 lbs
944434
(944-434)		 1-1/2" 3" 1-1/2" 2.29" 4.04" 1.40 lbs
944435
(944-435)		 2" 3-1/2" 2" 2.48" 5.04" 2.70 lbs
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
