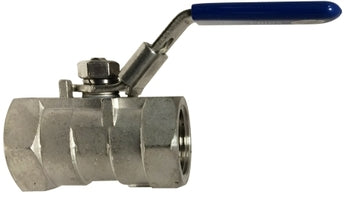

949102 (949-102) Midland Standard Port One-Piece Ball Valve - 1000 PSI - Locking Handle - 3/8" Female NPT x 3/8" Female NPT - 316 Stainless Steel

949102 "949-102" by Midland | Standard Port One-Piece Ball Valve | Locking Handle | 3/8" Female NPT x 3/8" Female NPT | 1000 PSI | 316 Stainless Steel

Save $2.61 Save $2.61
$36.57
$36.57 - $36.57
$36.57
$33.96
$33.96 - $33.96
$33.96

Midland Industries
Standard Port One-Piece Ball Valve - Female NPT x Female NPT - 316 Stainless Steel

Pressure rating: 1000 PSI

Inventory @ Manufacturers Warehouse: 442 Units
Specifications for Variant SKU: 949102 Midland
Shape (Orientation): Straight
Ends Configuration: 3/8in Female NPT, 3/8in Female NPT, Some Ends Match
Material(s): 316 Stainless Steel
Applicable Specs & Approvals: API 598
Features:
  • Manufactured for harsh environments with female NPT threads
  • Locking handle for greater security.
  • Standard port has restricted flow.
  • Pressure rating: 1000PSI (PN63)
  • Pressure Test: API 598
  • Valves will accept a pad-lock on the handle.
Construction:
  • Made with corrosion resistant stainless steel materials.
  • PTFE seat and seals
  • Investment Castings for Body and Cap
  • Internal Entry Blow-out proof stem
  • Material: CF8M
  • Generic handles
Specifications:
  • Threaded Ends: ANSI B2.1
Item Parts Material
1 Plastic Cover Plastic
2 Handle AISI 304 SS
3 Thrust Washer PTFE
4 Packing Ring AISI 304 SS
5 Stem Packing PTFE
6 Seat PTFE
7 Seat AISI 316 SS
8 Stem Nut AISI 304 SS
9 Ball 316SS ASTM-A351 CF8M
10 Cap 316SS ASTM-A351 CF8M
11 Body 316SS ASTM-A351 CF8M
Part Number Size D L H W Weight
949101
(949-101)		 1/4" 0.20" 1.53" 1.53" 3.03" 0.19
949102
(949-102)		 3/8" 0.27" 1.74" 1.53" 3.03" 0.23
949103
(949-103)		 1/2" 0.36" 2.24" 1.73" 3.46" 0.41
949104
(949-104)		 3/4" 0.50" 2.32" 1.89" 3.46" 0.63
949105
(949-105)		 1" 0.59" 2.80" 2.24" 4.29" 0.86
949106
(949-106)		 1-1/4" 0.79" 3.07" 2.32" 4.29" 1.34
949107
(949-107)		 1-1/2" 0.98" 3.26" 2.76" 5.14" 2.00
949108
(949-108)		 2" 1.25" 3.94" 2.24" 6.50" 2.88
