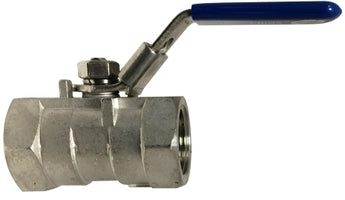

949105 (949-105) Midland Standard Port One-Piece Ball Valve - 1000 PSI - Locking Handle - 1" Female NPT x 1" Female NPT - 316 Stainless Steel

949105 "949-105" by Midland | Standard Port One-Piece Ball Valve | Locking Handle | 1" Female NPT x 1" Female NPT | 1000 PSI | 316 Stainless Steel

Save $3.86

$54.24

$54.24 - $54.24

$54.24

$50.38

$50.38 - $50.38

$50.38

Midland Industries
Standard Port One-Piece Ball Valve - Female NPT x Female NPT - 316 Stainless Steel

Pressure rating: 1000 PSI

Inventory @ Manufacturers Warehouse: 76 Units

Quantity

Specifications for Variant SKU: 949105 Midland
Shape (Orientation):	Straight
Ends Configuration:	1in Female NPT, 1in Female NPT, Some Ends Match
Material(s):	316 Stainless Steel
Applicable Specs & Approvals:	API 598

Features:
Manufactured for harsh environments with female NPT threads Locking handle for greater security. Standard port has restricted flow. Pressure rating: 1000PSI (PN63) Pressure Test: API 598 Valves will accept a pad-lock on the handle.
Construction:
Made with corrosion resistant stainless steel materials. PTFE seat and seals Investment Castings for Body and Cap Internal Entry Blow-out proof stem Material: CF8M Generic handles
Specifications:
Threaded Ends: ANSI B2.1

Item	Parts	Material
1	Plastic Cover	Plastic
2	Handle	AISI 304 SS
3	Thrust Washer	PTFE
4	Packing Ring	AISI 304 SS
5	Stem Packing	PTFE
6	Seat	PTFE
7	Seat	AISI 316 SS
8	Stem Nut	AISI 304 SS
9	Ball	316SS ASTM-A351 CF8M
10	Cap	316SS ASTM-A351 CF8M
11	Body	316SS ASTM-A351 CF8M


Part Number	Size	D	L	H	W	Weight
949101 (949-101)	1/4"	0.20"	1.53"	1.53"	3.03"	0.19
949102 (949-102)	3/8"	0.27"	1.74"	1.53"	3.03"	0.23
949103 (949-103)	1/2"	0.36"	2.24"	1.73"	3.46"	0.41
949104 (949-104)	3/4"	0.50"	2.32"	1.89"	3.46"	0.63
949105 (949-105)	1"	0.59"	2.80"	2.24"	4.29"	0.86
949106 (949-106)	1-1/4"	0.79"	3.07"	2.32"	4.29"	1.34
949107 (949-107)	1-1/2"	0.98"	3.26"	2.76"	5.14"	2.00
949108 (949-108)	2"	1.25"	3.94"	2.24"	6.50"	2.88
