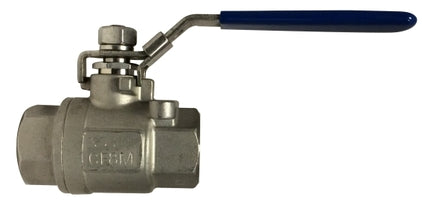

949175 (949-175) Midland Full Port Two-Piece Ball Valve - 2000 PSI - Locking Handle - 1" Female NPT x 1" Female NPT - 316 Stainless Steel

949175 "949-175" by Midland | Full Port Two-Piece Ball Valve | Locking Handle | 1" Female NPT x 1" Female NPT | 2000 PSI | 316 Stainless Steel

Save $55.53

$138.83

$138.83 - $138.83

$138.83

$83.30

$83.30 - $83.30

$83.30

Midland Industries
Full Port Two-Piece Ball Valve with Locking Handle - Female NPT x Female NPT - 316 Stainless Steel

Pressure rating: 2000 PSI

Inventory @ Manufacturers Warehouse: 387 Units

Quantity

Specifications for Variant SKU: 949175 Midland
Shape (Orientation):	Straight
Ends Configuration:	1in Female NPT, 1in Female NPT, Some Ends Match
Material(s):	316 Stainless Steel
Applicable Specs & Approvals:	API 598

Features:
Pressure test: API 598
Construction:
Investment Castings for body and cap Internal Entry blow-out proof stem Material: CF8M (316SS) Generic Handles
Specifications:
Threaded Ends: ANSI B2,1

Number	Description	Material	PCS
1	Body	316 Stainless Steel	1
2	Ball Seat	PTFE	2
3	Ball	316 Stainless Steel	1
4	Body Seal	PTFE	1
5	Cap	316 Stainless Steel	1
6	Stem	316 Stainless Steel	1
7	Thrust Washer	PTFE	1
8	Packing	PTFE	1
9	Gland Nut	304 Stainless Steel	1
10	Handle	304 Stainless Steel	1
11	Washer	304 Stainless Steel	1
12	Nut	304 Stainless Steel	1
13	Lock Device	304 Stainless Steel	1
14	Handle Cover	Plastic	1


Part Number	Size	D	L	H	W	N.M	Weight lbs.
949171 (949-171)	1/4"	0.36"	2.13"	2.13"	4.33"	0.157"	0.64
949172 (949-172)	3/8"	0.50"	2.13"	2.16"	4.33"	0.157"	0.58
949173 (949-173)	1/2"	0.59"	2.24"	2.28"	4.53"	0.197"	0.71
949174 (949-174)	3/4"	0.79"	2.76"	2.40"	4.53"	0.315"	1.18
949175 (949-175)	1"	0.98"	3.50"	3.03"	6.04"	0.394"	2.33
949176 (949-176)	1-1/4"	1.25"	4.12"	3.19"	6.04"	0.551"	3.48
949177 (949-177)	1-1/2"	1.50"	4.05"	3.54"	6.10"	0.709"	4.03
949178 (949-178)	2"	1.96"	4.90"	4.25"	6.10"	0.984"	7.50
