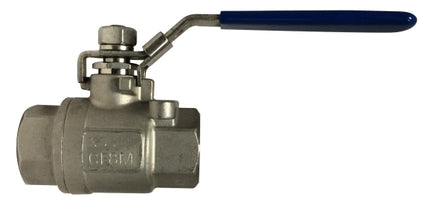

949178 (949-178) Midland Full Port Two-Piece Ball Valve - 2000 PSI - Locking Handle - 2" Female NPT x 2" Female NPT - 316 Stainless Steel

949178 "949-178" by Midland | Full Port Two-Piece Ball Valve | Locking Handle | 2" Female NPT x 2" Female NPT | 2000 PSI | 316 Stainless Steel

Save $154.22 Save $154.22
$385.55
$385.55 - $385.55
$385.55
$231.33
$231.33 - $231.33
$231.33

Midland Industries
Full Port Two-Piece Ball Valve with Locking Handle - Female NPT x Female NPT - 316 Stainless Steel

Pressure rating: 2000 PSI

Inventory @ Manufacturers Warehouse: 81 Units
Specifications for Variant SKU: 949178 Midland
Shape (Orientation): Straight
Ends Configuration: 2in Female NPT, 2in Female NPT, Some Ends Match
Material(s): 316 Stainless Steel
Applicable Specs & Approvals: API 598
Features:
  • Pressure test: API 598
Construction:
  • Investment Castings for body and cap
  • Internal Entry blow-out proof stem
  • Material: CF8M (316SS)
  • Generic Handles
Specifications:
  • Threaded Ends: ANSI B2,1
Number Description Material PCS
1 Body 316 Stainless Steel 1
2 Ball Seat PTFE 2
3 Ball 316 Stainless Steel 1
4 Body Seal PTFE 1
5 Cap 316 Stainless Steel 1
6 Stem 316 Stainless Steel 1
7 Thrust Washer PTFE 1
8 Packing PTFE 1
9 Gland Nut 304 Stainless Steel 1
10 Handle 304 Stainless Steel 1
11 Washer 304 Stainless Steel 1
12 Nut 304 Stainless Steel 1
13 Lock Device 304 Stainless Steel 1
14 Handle Cover Plastic 1
Part Number Size D L H W N.M Weight
lbs.
949171
(949-171)		 1/4" 0.36" 2.13" 2.13" 4.33" 0.157" 0.64
949172
(949-172)		 3/8" 0.50" 2.13" 2.16" 4.33" 0.157" 0.58
949173
(949-173)		 1/2" 0.59" 2.24" 2.28" 4.53" 0.197" 0.71
949174
(949-174)		 3/4" 0.79" 2.76" 2.40" 4.53" 0.315" 1.18
949175
(949-175)		 1" 0.98" 3.50" 3.03" 6.04" 0.394" 2.33
949176
(949-176)		 1-1/4" 1.25" 4.12" 3.19" 6.04" 0.551" 3.48
949177
(949-177)		 1-1/2" 1.50" 4.05" 3.54" 6.10" 0.709" 4.03
949178
(949-178)		 2" 1.96" 4.90" 4.25" 6.10" 0.984" 7.50
