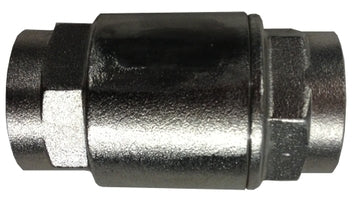

949442 (949-442) Midland Two-Piece Barrel Type Spring Check Valve - 3/8" Female NPT x 3/8" Female NPT - Stainless Steel

949442 by Midland | Two-Piece Barrel Type Spring Check Valve | 3/8" Female NPT x 3/8" Female NPT | Stainless Steel

Save $17.84 Save $17.84
$44.60
$44.60 - $44.60
$44.60
$26.76
$26.76 - $26.76
$26.76

Midland Industries
Two-Piece Barrel Type Spring Check Valve - Female NPT x Female NPT - Stainless Steel

Working Pressure: 300 PSI (PN20)

Inventory @ Manufacturers Warehouse: 66 Units
Specifications for Variant SKU: 949442 Midland
Shape (Orientation): Straight
Ends Configuration: 3/8in Female NPT, 3/8in Female NPT, Some Ends Match
Material(s): Stainless Steel
Seal Material(s): PTFE
Features:
  • Working Temperature: -10°C -120°C
  • Opening Pressure: 2 PSI
  • Suitable Medium: W.O.G.
  • Made in China
Number Part Material QTY
1 Body CF8M/CF8 1
2 Bolt 304 Stainless Steel 1
3 Seat NBR 1
4 Disc 304 Stainless Steel 1
5 Spring 316/304 Stainless Steel 1
6 Gasket PTFE 1
7 Cap CF8M/CF8 1
Part Number Size L D Weight
lbs.
949441
(949-441)		 1/4" 2.00" 1.142" 0.27
949442
(949-442)		 3/8" 2.00" 1.142" 0.24
949443
(949-443)		 1/2" 2.24" 1.28" 0.36
949444
(949-444)		 3/4" 2.44" 1.594" 0.54
949445
(949-445)		 1" 2.95" 1.89" 0.88
949446
(949-446)		 1-1/4" 3.23" 2.362" 1.39
949447
(949-447)		 1-1/2" 3.46" 2.756" 1.81
949448
(949-448)		 2" 3.94" 3.425" 2.86
