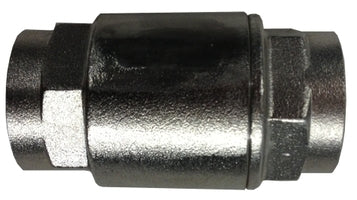

949447 (949-447) Midland Two-Piece Barrel Type Spring Check Valve - 1-1/2" Female NPT x 1-1/2" Female NPT - Stainless Steel

949447 by Midland | Two-Piece Barrel Type Spring Check Valve | 1-1/2" Female NPT x 1-1/2" Female NPT | Stainless Steel

Save $67.01 Save $67.01
$167.52
$167.52 - $167.52
$167.52
$100.51
$100.51 - $100.51
$100.51

Midland Industries
Two-Piece Barrel Type Spring Check Valve - Female NPT x Female NPT - Stainless Steel

Working Pressure: 300 PSI (PN20)

Inventory @ Manufacturers Warehouse: 401 Units
Specifications for Variant SKU: 949447 Midland
Shape (Orientation): Straight
Ends Configuration: 1-1/2in Female NPT, 1-1/2in Female NPT, Some Ends Match
Material(s): Stainless Steel
Seal Material(s): PTFE
Features:
  • Working Temperature: -10°C -120°C
  • Opening Pressure: 2 PSI
  • Suitable Medium: W.O.G.
  • Made in China
Number Part Material QTY
1 Body CF8M/CF8 1
2 Bolt 304 Stainless Steel 1
3 Seat NBR 1
4 Disc 304 Stainless Steel 1
5 Spring 316/304 Stainless Steel 1
6 Gasket PTFE 1
7 Cap CF8M/CF8 1
Part Number Size L D Weight
lbs.
949441
(949-441)		 1/4" 2.00" 1.142" 0.27
949442
(949-442)		 3/8" 2.00" 1.142" 0.24
949443
(949-443)		 1/2" 2.24" 1.28" 0.36
949444
(949-444)		 3/4" 2.44" 1.594" 0.54
949445
(949-445)		 1" 2.95" 1.89" 0.88
949446
(949-446)		 1-1/4" 3.23" 2.362" 1.39
949447
(949-447)		 1-1/2" 3.46" 2.756" 1.81
949448
(949-448)		 2" 3.94" 3.425" 2.86
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
