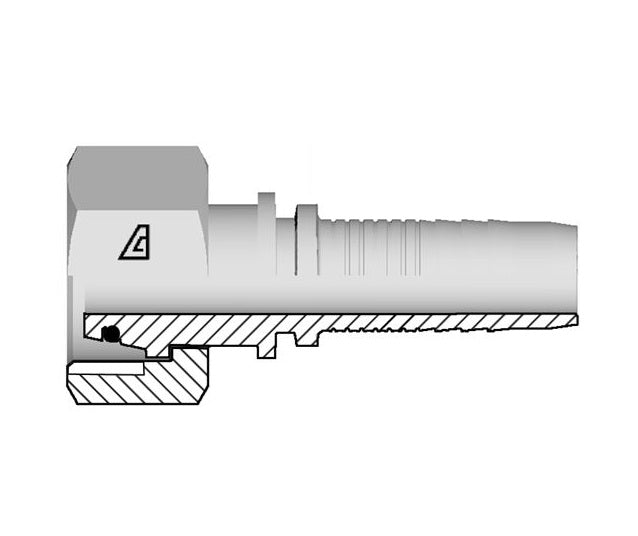

A-0414-FMOL Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | DIN 3865 Light | -04 Hose ID x M14 Female Metric O-Ring Swivel 24° Seat | Steel | Pack of 5

Save $0.88

$3.08

$3.08 - $3.08

$3.08

$2.20

$2.20 - $2.20

$2.20

Kuriyama of America Inc.
Alfagomma | A Series | Two-Piece Hydraulic Hose Fitting | DIN 3853 Light | Hose Barb x Female Metric O-Ring Swivel 24° Seat

Specifications for Variant SKU: A-0414-FMOL Kuriyama \| 5 \|
Brand:	Alfagomma
Series:	A Series
Shape (Orientation):	Straight
Material(s):	Steel
Applicable Specs & Approvals:	DIN 3853
Special Properties:	Swivel
Compatible with the following Series:	PF354 Series \| PF354NC Series \| PFP354 Series \| PFP354NC Series \| PF267 Series \| PF267NC Series \| PF528 Series \| PF528NC Series \| PF427 Series \| PF427NC Series \| PF354TL Series \| PF354NCTL Series \| PF267TL Series \| PF267NCTL Series \| PF528TL Series \| PF528NCTL Series \| PF321TC Series \| PF344LMT Series

About A Series Fittings:
Two-piece insert for: All wire and textile braided hoses. Thermoplastic hose. Flexor 4 and PTFE hose 3/16" thru 2". Alfabiotech 3000 1-1/4" and 1-1/2". Alfabiotech 4000 3/8" thru 1-1/4". Some smaller ID spiral wire reinforced hoses.
Features:
Alfagomma Top Coat Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards. Over 500 hours corrosion prevention in salt spray fog to white rust. More than 1000 hours corrosion resistance to red rust.


Steel Part Number	Hose ID Size			F Thread	Tube OD	C Cut-Off Factor	Hex Diameter CH2	Weight
Steel Part Number	Dash Size	(in.)	(mm)	(mm) x TP (mm)	(mm)	(mm)	(mm)	lbs/each
A-0412-FMOL	04	1/4"	6.4mm	M12x1.5	6mm	23.9mm	14mm	0.05 lbs
A-0414-FMOL	04	1/4"	6.4mm	M14x1.5	8mm	24.4mm	17mm	0.06 lbs
A-0416-FMOL	04	1/4"	6.4mm	M16x1.5	10mm	25.4m	19mm	0.08 lbs
A-0516-FMOL	05	5/16"	7.9mm	M16x1.5	10mm	25.4mm	19mm	0.09 lbs
A-0616-FMOL	06	3/8"	9.5mm	M16x1.5	10mm	25.4mm	19mm	0.88 lbs
A-0618-FMOL	06	3/8"	9.5mm	M18x1.5	12mm	25.4mm	22mm	0.12 lbs
A-0622-FMOL	06	3/8"	9.5mm	M22x1.5	15mm	27.4mm	27mm	0.14 lbs
A-0822-FMOL	08	1/2"	12.7mm	M22x1.5	15mm	28.2mm	27mm	0.19 lbs
A-1026-FMOL	10	5/8"	15.9mm	M26x1.5	18mm	29.2mm	32mm	0.27 lbs
A-1226-FMOL	12	3/4"	19.0mm	M26x1.5	18mm	25.5mm	32mm	0.35 lbs
A-1230-FMOL	12	3/4"	19.0mm	M30x2	22mm	31.7mm	36mm	0.38 lbs
A-1636-FMOL	16	1"	25.4mm	M36x2	28mm	33.6mm	41mm	0.53 lbs
A-2045-FMOL	20	1-1/4"	31.8mm	M45x2	35mm	40.1mm	50mm	0.88 lbs
A-2452-FMOL	24	1-1/2"	38.1mm	M52x2	42mm	40.5mm	60mm	1.28 lbs
