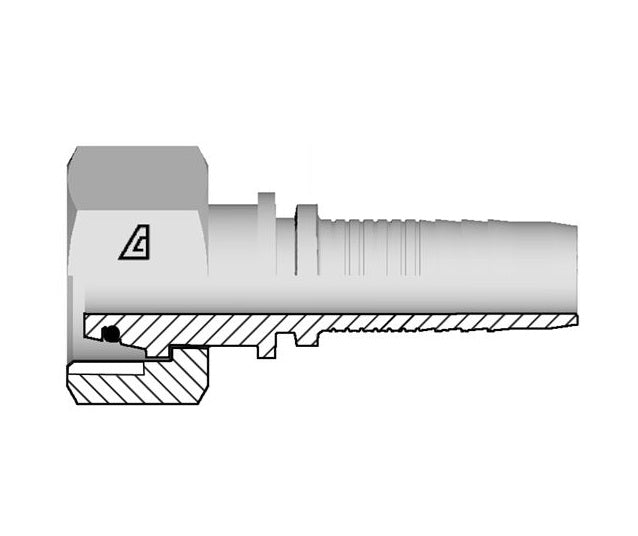

A-0516-FMOL Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | DIN 3865 Light | -05 Hose ID x M16 Female Metric O-Ring Swivel 24° Seat | Steel

A-0516-FMOL Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | DIN 3865 Light | -05 Hose ID x M16 Female Metric O-Ring Swivel 24° Seat | Steel

Save $1.02 Save $1.02
$3.58
$3.58 - $3.58
$3.58
$2.56
$2.56 - $2.56
$2.56

Kuriyama of America Inc.
Alfagomma | A Series | Two-Piece Hydraulic Hose Fitting | DIN 3853 Light | Hose Barb x Female Metric O-Ring Swivel 24° Seat
Specifications for Variant SKU: A-0516-FMOL Kuriyama
Brand: Alfagomma
Series: A Series
Shape (Orientation): Straight
Material(s): Steel
Applicable Specs & Approvals: DIN 3853
Special Properties: Swivel
Compatible with the following Series: PF354 Series  |   PF354NC Series  |   PFP354 Series  |   PFP354NC Series  |   PF267 Series  |   PF267NC Series  |   PF528 Series  |   PF528NC Series  |   PF427 Series  |   PF427NC Series  |   PF354TL Series  |   PF354NCTL Series  |   PF267TL Series  |   PF267NCTL Series  |   PF528TL Series  |   PF528NCTL Series  |   PF321TC Series  |   PF344LMT Series
About A Series Fittings:
  • Two-piece insert for:
    • All wire and textile braided hoses.
    • Thermoplastic hose.
    • Flexor 4 and PTFE hose 3/16" thru 2".
    • Alfabiotech 3000 1-1/4" and 1-1/2".
    • Alfabiotech 4000 3/8" thru 1-1/4".
    • Some smaller ID spiral wire reinforced hoses.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Steel
Part Number		 Hose ID Size F Thread Tube OD C
Cut-Off Factor		 Hex
Diameter
CH2		 Weight
Dash
Size		 (in.) (mm) (mm) x TP (mm) (mm) (mm) (mm) lbs/each
A-0412-FMOL 04 1/4" 6.4mm M12x1.5 6mm 23.9mm 14mm 0.05 lbs
A-0414-FMOL 04 1/4" 6.4mm M14x1.5 8mm 24.4mm 17mm 0.06 lbs
A-0416-FMOL 04 1/4" 6.4mm M16x1.5 10mm 25.4m 19mm 0.08 lbs
A-0516-FMOL 05 5/16" 7.9mm M16x1.5 10mm 25.4mm 19mm 0.09 lbs
A-0616-FMOL 06 3/8" 9.5mm M16x1.5 10mm 25.4mm 19mm 0.88 lbs
A-0618-FMOL 06 3/8" 9.5mm M18x1.5 12mm 25.4mm 22mm 0.12 lbs
A-0622-FMOL 06 3/8" 9.5mm M22x1.5 15mm 27.4mm 27mm 0.14 lbs
A-0822-FMOL 08 1/2" 12.7mm M22x1.5 15mm 28.2mm 27mm 0.19 lbs
A-1026-FMOL 10 5/8" 15.9mm M26x1.5 18mm 29.2mm 32mm 0.27 lbs
A-1226-FMOL 12 3/4" 19.0mm M26x1.5 18mm 25.5mm 32mm 0.35 lbs
A-1230-FMOL 12 3/4" 19.0mm M30x2 22mm 31.7mm 36mm 0.38 lbs
A-1636-FMOL 16 1" 25.4mm M36x2 28mm 33.6mm 41mm 0.53 lbs
A-2045-FMOL 20 1-1/4" 31.8mm M45x2 35mm 40.1mm 50mm 0.88 lbs
A-2452-FMOL 24 1-1/2" 38.1mm M52x2 42mm 40.5mm 60mm 1.28 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
