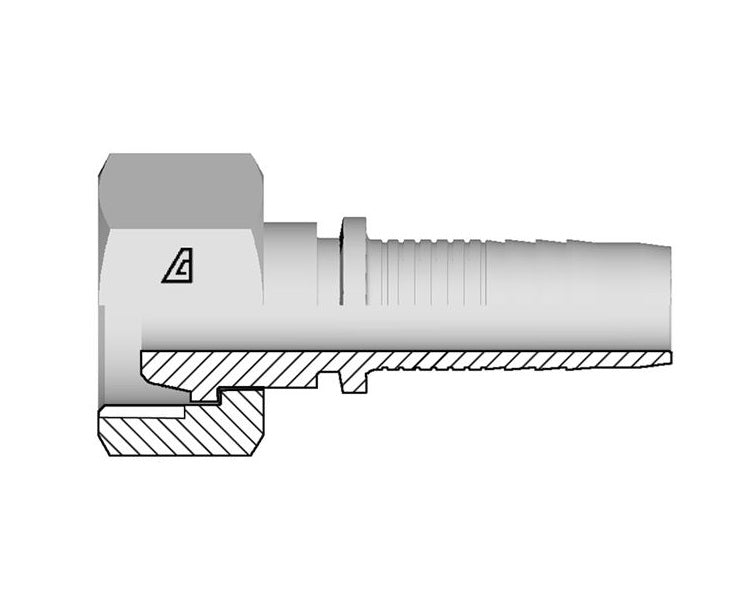

A-1030-FMFS Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | -10 Hose ID x M30 Female Metric French Type (GAZ) | Steel

Name: A-1030-FMFS Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | -10 Hose ID x M30 Female Metric French Type (GAZ) | Steel
Brand: Kuriyama
SKU: A-1030-FMFS Kuriyama
Price: 12.51 USD
Availability: InStock

Save $5.00

$17.51

$17.51 - $17.51

$17.51

$12.51

$12.51 - $12.51

$12.51

Kuriyama of America Inc.
Alfagomma | A Series | Two-Piece Hydraulic Hose Fitting | Hose Barb x Female Metric French Type (GAZ)

Specifications for Variant SKU: A-1030-FMFS Kuriyama
Brand:	Alfagomma
Series:	A Series
Shape (Orientation):	Straight
Material(s):	Steel
Compatible with the following Series:	PF354 Series \| PF354NC Series \| PFP354 Series \| PFP354NC Series \| PF267 Series \| PF267NC Series \| PF528 Series \| PF528NC Series \| PF427 Series \| PF427NC Series \| PF354TL Series \| PF354NCTL Series \| PF267TL Series \| PF267NCTL Series \| PF528TL Series \| PF528NCTL Series \| PF321TC Series \| PF344LMT Series

About A Series Fittings:
Two-piece insert for: All wire and textile braided hoses. Thermoplastic hose. Flexor 4 and PTFE hose 3/16" thru 2". Alfabiotech 3000 1-1/4" and 1-1/2". Alfabiotech 4000 3/8" thru 1-1/4". Some smaller ID spiral wire reinforced hoses.
Features:
Alfagomma Top Coat Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards. Over 500 hours corrosion prevention in salt spray fog to white rust. More than 1000 hours corrosion resistance to red rust.


Steel Part Number	Hose ID Size			F Thread Size	Tube OD	C Cut-Off Factor	Hex Dia. CH2	Weight
Steel Part Number	Dash Size	(in.)	(mm)	(mm) x TP (mm)	(mm)	(mm)	(mm)	lbs/each
A-0420-FMFS	04	1/4"	6.4mm	M20x1.5	13.25mm	23.8mm	24mm	0.13 lbs
A-0520-FMFS	05	5/16"	7.9mm	M20x1.5	13.25mm	23.8mm	24mm	0.14 lbs
A-0620-FMFS	06	3/8"	9.5mm	M20x1.5	13.25mm	23.8mm	24mm	0.14 lbs
A-0624-FMFS	06	3/8"	9.5mm	M24x1.5	16.75mm	26.8mm	30mm	0.15 lbs
A-0824-FMFS	08	1/2"	12.7mm	M24x1.5	16.75mm	26.8mm	30mm	0.22 lbs
A-1030-FMFS	10	5/8"	15.9mm	M30x1.5	21.25mm	26.6mm	36mm	0.40 lbs
A-1236-FMFS	12	3/4"	19.0mm	M36x1.5	26.75mm	27.0mm	42mm	0.46 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
