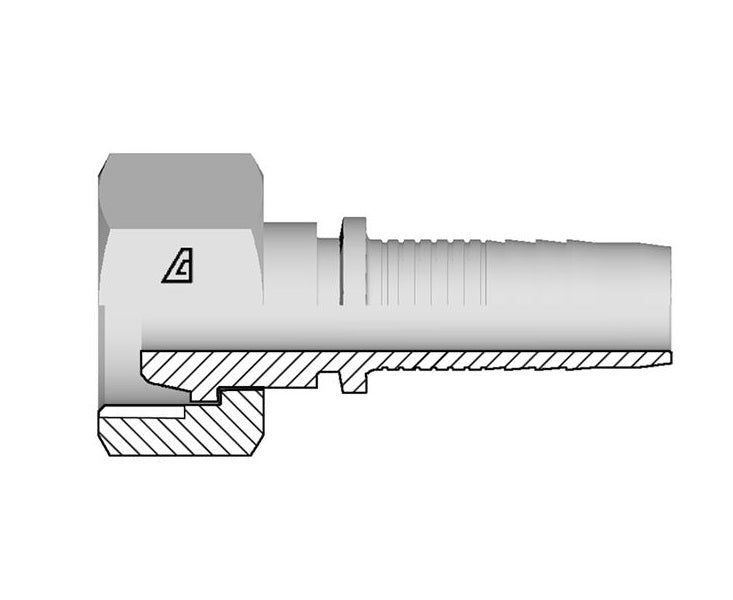

A-1236-FMFS Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | -12 Hose ID x M36 Female Metric French Type (GAZ) | Steel

A-1236-FMFS Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | -12 Hose ID x M36 Female Metric French Type (GAZ) | Steel

Save $9.44 Save $9.44
$33.03
$33.03 - $33.03
$33.03
$23.59
$23.59 - $23.59
$23.59

Kuriyama of America Inc.
Alfagomma | A Series | Two-Piece Hydraulic Hose Fitting | Hose Barb x Female Metric French Type (GAZ)
Specifications for Variant SKU: A-1236-FMFS Kuriyama
Brand: Alfagomma
Series: A Series
Shape (Orientation): Straight
Material(s): Steel
Compatible with the following Series: PF354 Series  |   PF354NC Series  |   PFP354 Series  |   PFP354NC Series  |   PF267 Series  |   PF267NC Series  |   PF528 Series  |   PF528NC Series  |   PF427 Series  |   PF427NC Series  |   PF354TL Series  |   PF354NCTL Series  |   PF267TL Series  |   PF267NCTL Series  |   PF528TL Series  |   PF528NCTL Series  |   PF321TC Series  |   PF344LMT Series
About A Series Fittings:
  • Two-piece insert for:
    • All wire and textile braided hoses.
    • Thermoplastic hose.
    • Flexor 4 and PTFE hose 3/16" thru 2".
    • Alfabiotech 3000 1-1/4" and 1-1/2".
    • Alfabiotech 4000 3/8" thru 1-1/4".
    • Some smaller ID spiral wire reinforced hoses.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Steel
Part Number		 Hose ID Size F Thread Size Tube OD C
Cut-Off Factor		 Hex Dia.
CH2		 Weight
Dash
Size		 (in.) (mm) (mm) x TP (mm) (mm) (mm) (mm) lbs/each
A-0420-FMFS 04 1/4" 6.4mm M20x1.5 13.25mm 23.8mm 24mm 0.13 lbs
A-0520-FMFS 05 5/16" 7.9mm M20x1.5 13.25mm 23.8mm 24mm 0.14 lbs
A-0620-FMFS 06 3/8" 9.5mm M20x1.5 13.25mm 23.8mm 24mm 0.14 lbs
A-0624-FMFS 06 3/8" 9.5mm M24x1.5 16.75mm 26.8mm 30mm 0.15 lbs
A-0824-FMFS 08 1/2" 12.7mm M24x1.5 16.75mm 26.8mm 30mm 0.22 lbs
A-1030-FMFS 10 5/8" 15.9mm M30x1.5 21.25mm 26.6mm 36mm 0.40 lbs
A-1236-FMFS 12 3/4" 19.0mm M36x1.5 26.75mm 27.0mm 42mm 0.46 lbs
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
