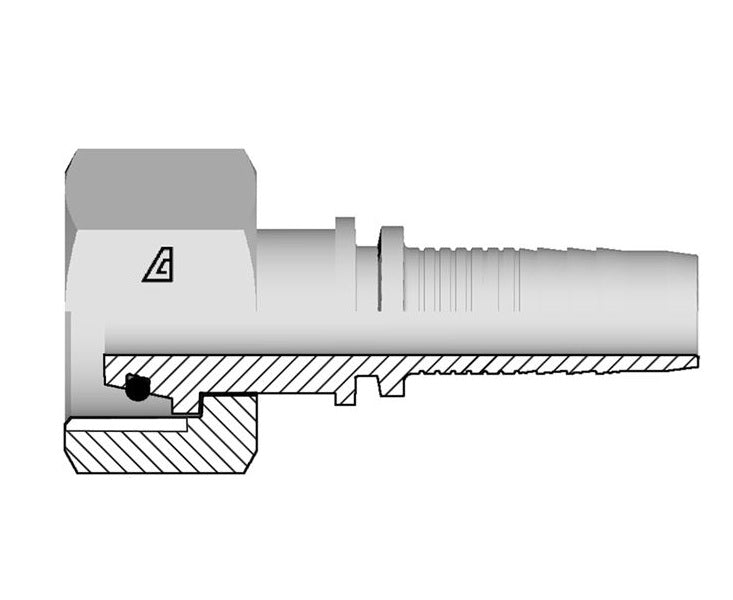

A-1642-FMOH Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | DIN 3865 Heavy | -16 Hose ID x M42 Female Metric O-Ring Swivel 24° Seat | Steel

Name: A-1642-FMOH Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | DIN 3865 Heavy | -16 Hose ID x M42 Female Metric O-Ring Swivel 24° Seat | Steel
Brand: Kuriyama
SKU: A-1642-FMOH Kuriyama
Price: 36.06 USD
Availability: InStock

Save $14.42

$50.48

$50.48 - $50.48

$50.48

$36.06

$36.06 - $36.06

$36.06

Kuriyama of America Inc.
Alfagomma | A Series | Two-Piece Hydraulic Hose Fitting | DIN 3865 Heavy | Hose Barb x Female Metric O-Ring Swivel 24° Seat

Specifications for Variant SKU: A-1642-FMOH Kuriyama
Brand:	Alfagomma
Series:	A Series
Shape (Orientation):	Straight
Material(s):	Steel
Applicable Specs & Approvals:	DIN 3865
Special Properties:	Swivel
Compatible with the following Series:	PF354 Series \| PF354NC Series \| PFP354 Series \| PFP354NC Series \| PF267 Series \| PF267NC Series \| PF528 Series \| PF528NC Series \| PF427 Series \| PF427NC Series \| PF354TL Series \| PF354NCTL Series \| PF267TL Series \| PF267NCTL Series \| PF528TL Series \| PF528NCTL Series \| PF321TC Series \| PF344LMT Series

About A Series Fittings:
Two-piece insert for: All wire and textile braided hoses. Thermoplastic hose. Flexor 4 and PTFE hose 3/16" thru 2". Alfabiotech 3000 1-1/4" and 1-1/2". Alfabiotech 4000 3/8" thru 1-1/4". Some smaller ID spiral wire reinforced hoses.
Features:
Alfagomma Top Coat Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards. Over 500 hours corrosion prevention in salt spray fog to white rust. More than 1000 hours corrosion resistance to red rust.


Steel Part Number	Hose ID Size			F Thread	Tube OD	C Cut-Off Factor	Hex Diameter CH2	Weight
Steel Part Number	Dash Size	(in.)	(mm)	(mm) x TP (mm)	(mm)	(mm)	(mm)	lbs/each
A-0414-FMOH	04	1/4"	6.4mm	M14x1.5	6mm	26.4mm	17mm	0.07 lbs
A-0416-FMOH	04	1/4"	6.4mm	M16x1.5	8mm	27.7mm	19mm	0.08 lbs
A-0418-FMOH	04	1/4"	6.4mm	M18x1.5	10mm	27.6mm	22mm	0.12 lbs
A-0518-FMOH	05	5/16"	7.9mm	M18x1.5	10mm	27.6mm	22mm	0.12 lbs
A-0520-FMOH	05	5/16"	7.9mm	M20x1.5	12mm	27.6mm	24mm	0.12 lbs
A-0620-FMOH	06	3/8"	9.5mm	M20x1.5	12mm	27.6mm	24mm	0.14 lbs
A-0622-FMOH	06	3/8"	9.5mm	M22x1.5	14mm	31.1mm	27mm	0.20 lbs
A-0824-FMOH	08	1/2"	12.7mm	M24x1.5	16mm	31.7mm	30mm	0.26 lbs
A-1030-FMOH	10	5/8"	15.9mm	M30x2	20mm	36.5mm	36mm	0.41 lbs
A-1236-FMOH	12	3/4"	19.0mm	M36x2	25mm	40.2mm	46mm	0.75 lbs
A-1642-FMOH	16	1"	25.4mm	M42x2	30mm	43.1mm	50mm	0.97 lbs
A-2052-FMOH	20	1-1/4"	31.8mm	M52x2	38mm	48.1mm	60mm	1.54 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
