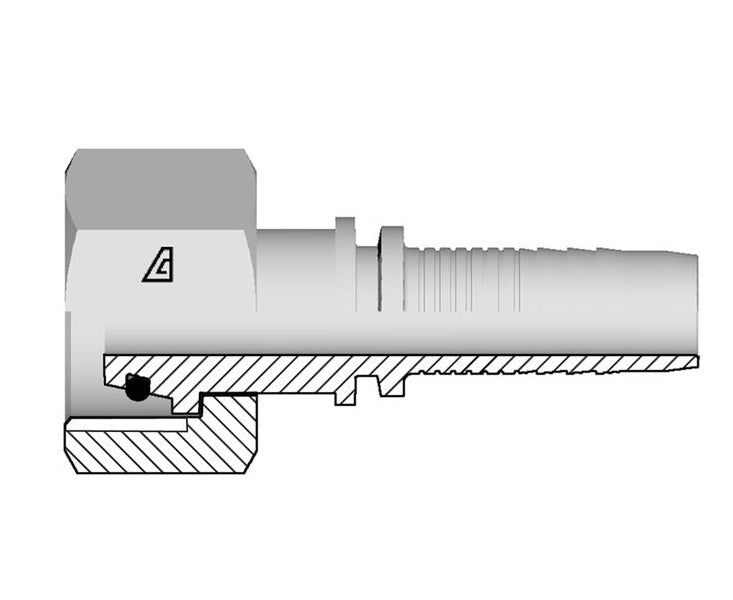

A-2052-FMOH Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | DIN 3865 Heavy | -20 Hose ID x M52 Female Metric O-Ring Swivel 24° Seat | Steel

A-2052-FMOH Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | DIN 3865 Heavy | -20 Hose ID x M52 Female Metric O-Ring Swivel 24° Seat | Steel

Save $15.22 Save $15.22
$53.28
$53.28 - $53.28
$53.28
$38.06
$38.06 - $38.06
$38.06

Kuriyama of America Inc.
Alfagomma | A Series | Two-Piece Hydraulic Hose Fitting | DIN 3865 Heavy | Hose Barb x Female Metric O-Ring Swivel 24° Seat
Specifications for Variant SKU: A-2052-FMOH Kuriyama
Brand: Alfagomma
Series: A Series
Shape (Orientation): Straight
Material(s): Steel
Applicable Specs & Approvals: DIN 3865
Special Properties: Swivel
Compatible with the following Series: PF354 Series  |   PF354NC Series  |   PFP354 Series  |   PFP354NC Series  |   PF267 Series  |   PF267NC Series  |   PF528 Series  |   PF528NC Series  |   PF427 Series  |   PF427NC Series  |   PF354TL Series  |   PF354NCTL Series  |   PF267TL Series  |   PF267NCTL Series  |   PF528TL Series  |   PF528NCTL Series  |   PF321TC Series  |   PF344LMT Series
About A Series Fittings:
  • Two-piece insert for:
    • All wire and textile braided hoses.
    • Thermoplastic hose.
    • Flexor 4 and PTFE hose 3/16" thru 2".
    • Alfabiotech 3000 1-1/4" and 1-1/2".
    • Alfabiotech 4000 3/8" thru 1-1/4".
    • Some smaller ID spiral wire reinforced hoses.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Steel
Part Number		 Hose ID Size F Thread Tube OD C
Cut-Off Factor		 Hex
Diameter
CH2		 Weight
Dash
Size		 (in.) (mm) (mm) x TP (mm) (mm) (mm) (mm) lbs/each
A-0414-FMOH 04 1/4" 6.4mm M14x1.5 6mm 26.4mm 17mm 0.07 lbs
A-0416-FMOH 04 1/4" 6.4mm M16x1.5 8mm 27.7mm 19mm 0.08 lbs
A-0418-FMOH 04 1/4" 6.4mm M18x1.5 10mm 27.6mm 22mm 0.12 lbs
A-0518-FMOH 05 5/16" 7.9mm M18x1.5 10mm 27.6mm 22mm 0.12 lbs
A-0520-FMOH 05 5/16" 7.9mm M20x1.5 12mm 27.6mm 24mm 0.12 lbs
A-0620-FMOH 06 3/8" 9.5mm M20x1.5 12mm 27.6mm 24mm 0.14 lbs
A-0622-FMOH 06 3/8" 9.5mm M22x1.5 14mm 31.1mm 27mm 0.20 lbs
A-0824-FMOH 08 1/2" 12.7mm M24x1.5 16mm 31.7mm 30mm 0.26 lbs
A-1030-FMOH 10 5/8" 15.9mm M30x2 20mm 36.5mm 36mm 0.41 lbs
A-1236-FMOH 12 3/4" 19.0mm M36x2 25mm 40.2mm 46mm 0.75 lbs
A-1642-FMOH 16 1" 25.4mm M42x2 30mm 43.1mm 50mm 0.97 lbs
A-2052-FMOH 20 1-1/4" 31.8mm M52x2 38mm 48.1mm 60mm 1.54 lbs
