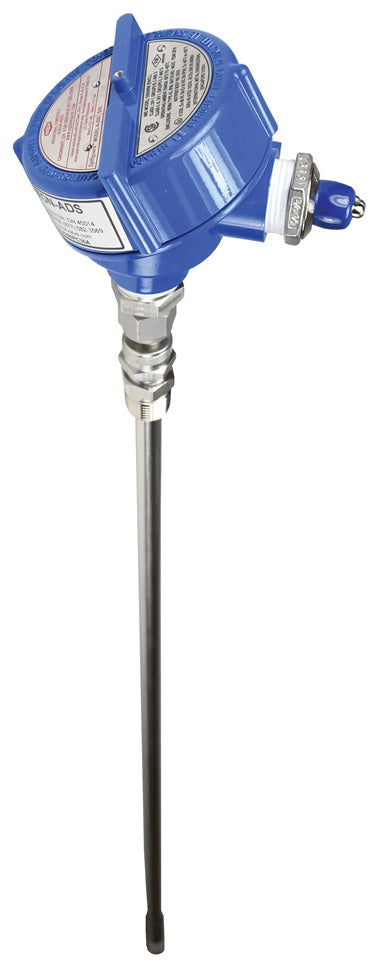

A200PHC12A by Dixon Valve | ADS Spillguard® Probe | with High-Temp Capacitance Probe | 12" Length

Name: A200PHC12A by Dixon Valve | ADS Spillguard® Probe | with High-Temp Capacitance Probe | 12" Length
Brand: Dixon
SKU: A200PHC12A Dixon
Price: 1348.45 USD
Availability: InStock

Save $898.97

$2,247.42

$2,247.42 - $2,247.42

$2,247.42

$1,348.45

$1,348.45 - $1,348.45

$1,348.45

Dixon Valve
ADS Spillguard® Probe

For materials with dielectric constant > 1.8, liquids, powders, slurries.

Specifications for Variant SKU: A200PHC12A Dixon
Brand:	ADS Spillguard®

Features:
1/2" NPT sliding fitting standard.
Construction:
Probe: 316 stainless. Housing: NEMA 4X, IP66.
Specifications:
Minimum dielectric constant 1.8. Activation point: 1/4" into liquid. Temperature range: Capacitance Probe: -14°F to 250°F (-26°C to 121°C). High-Temp Capacitance Probe: -14°F to 325°F (-26°C to 163°C). Pressure rating on standard unit: 50 PSI: consult Dixon® for applications up to 300 PSI. Probe designed for operating in Class I Division 1 Group ABCD and Class I Zone 0 Group IIC hazardous locations.

Capacitance Part Number	High-Temp Capacitance Part Number	Length
A200PC12A	A200PHC12A	12"
A200PC24A	-	24"
A200PC36A	A200PHC36A	36"
A200PC48A	A200PHC48A	48"
A200PC60A	A200PHC60A	60"
A200PC72A	A200PHC72A	72"
A200PC84A	-	84"
