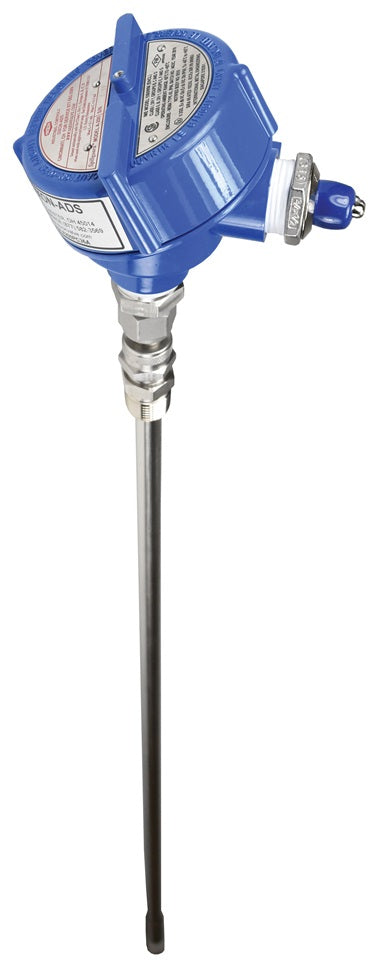

A200PHC72A by Dixon Valve | ADS Spillguard® Probe | with High-Temp Capacitance Probe | 72" Length
A200PHC72A by Dixon Valve | ADS Spillguard® Probe | with High-Temp Capacitance Probe | 72" Length
A200PHC72A by Dixon Valve | ADS Spillguard® Probe | with High-Temp Capacitance Probe | 72" Length

A200PHC72A by Dixon Valve | ADS Spillguard® Probe | with High-Temp Capacitance Probe | 72" Length

Save $1,001.15 Save $1,001.15
$2,502.87
$2,502.87 - $2,502.87
$2,502.87
$1,501.72
$1,501.72 - $1,501.72
$1,501.72

Dixon Valve
ADS Spillguard® Probe

For materials with dielectric constant > 1.8, liquids, powders, slurries.
Specifications for Variant SKU: A200PHC72A Dixon
Brand: ADS Spillguard®
Features:
  • 1/2" NPT sliding fitting standard.
Construction:
  • Probe: 316 stainless.
  • Housing: NEMA 4X, IP66.
Specifications:
  • Minimum dielectric constant 1.8.
  • Activation point: 1/4" into liquid.
  • Temperature range:
    • Capacitance Probe: -14°F to 250°F (-26°C to 121°C).
    • High-Temp Capacitance Probe: -14°F to 325°F (-26°C to 163°C).
  • Pressure rating on standard unit: 50 PSI: consult Dixon® for applications up to 300 PSI.
  • Probe designed for operating in Class I Division 1 Group ABCD and Class I Zone 0 Group IIC hazardous locations.
Capacitance
Part Number		 High-Temp Capacitance
Part Number		 Length
A200PC12A A200PHC12A 12"
A200PC24A - 24"
A200PC36A A200PHC36A 36"
A200PC48A A200PHC48A 48"
A200PC60A A200PHC60A 60"
A200PC72A A200PHC72A 72"
A200PC84A - 84"
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
