A27-12x12 Couplamatic A Series Coupling - JIC Seat - 90° Female Swivel Long Drop - 3/4" Hose ID - 1-1/16x12 Thread

A27-12x12 by Couplamatic | A Series Coupling | 3/4" Hose ID x 1-1/16x12 Thread JIC Seat Female Swivel Long Drop | 90° Elbow

Save $14.66 Save $14.66
$36.65
$36.65 - $36.65
$36.65
$21.99
$21.99 - $21.99
$21.99

Couplamatic Systems Inc.
A Series - JIC/SAE Dual Seat - 90° Female Swivel Long Drop
Specifications for Variant SKU: A27-12x12 Couplamatic
Series: A Series
Shape (Orientation): 90 Degree
Ends Configuration: 3/4in Female JIC, 3/4in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   2SK Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   JH Series  |   JH2 Series
Description:
  • A Series couplings can be crimped in virtually all adjustable crimp machines. Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification. Trivalent Zinc Plating.

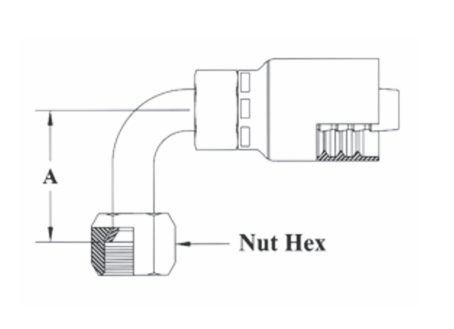

Part Number Hose ID Thread Size Tube OD A - Drop Inches Nut Hex Cross Reference Part Numbers
Aeroquip TTC Weatherhead Z
A27-4x4 1/4" 7/16x20 1/4" 1.80" 9/16" 1AA4FJC4a 04Z-644
A27-4x6* 1/4" 9/16x18 3/8" 1.80" 11/16" - -
A27-6x6* 3/8" 9/16x18 3/8" 2.18" 11/16" 1AA6FJC6 06Z-646
A27-6x8 3/8" 3/4x16 1/2" 2.50" 7/8" - 06Z-648
A27-8x8 1/2" 3/4x16 1/2" 2.50" 7/8" 1AA8FJC8a 08Z-648
A27-8x10 1/2" 7/8x14 5/8" 2.75" 1" 1AA10FJC8 08Z-650
A27-10x10 5/8" 7/8x14 5/8" 2.75" 1" - -
A27-12x12* 3/4" 1-1/16x12 3/4" 3.73" 1-1/4" 1AA12FJC12 12Z-652
A27-16x16* 1" 1-5/16x12 1" 4.50" 1-1/2" 1AA16FJC16 16Z-656L

*JIC Seat and thread only

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
