A27-6x8 Couplamatic A Series Coupling - JIC/SAE Dual Seat - 90° Female Swivel Long Drop - 3/8" Hose ID - 3/4x16 Thread

A27-6x8 by Couplamatic | A Series Coupling | 3/8" Hose ID x 3/4x16 Thread JIC/SAE Dual Seat Female Swivel Long Drop | 90° Elbow

Save $8.61 Save $8.61
$21.53
$21.53 - $21.53
$21.53
$12.92
$12.92 - $12.92
$12.92

Couplamatic Systems Inc.
A Series - JIC/SAE Dual Seat - 90° Female Swivel Long Drop
Specifications for Variant SKU: A27-6x8 Couplamatic
Series: A Series
Shape (Orientation): 90 Degree
Ends Configuration: 1/2in Female JIC, 3/8in Hose Barb, 1/2in Female SAE 45 Flare
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   2SK Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   JH Series  |   JH2 Series
Description:
  • A Series couplings can be crimped in virtually all adjustable crimp machines. Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification. Trivalent Zinc Plating.

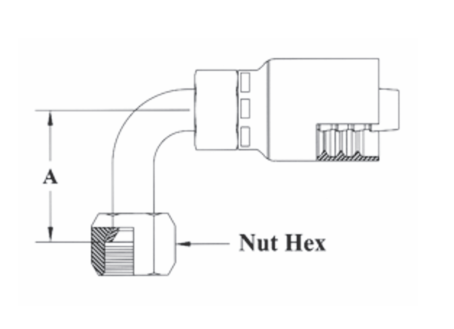

Part Number Hose ID Thread Size Tube OD A - Drop Inches Nut Hex Cross Reference Part Numbers
Aeroquip TTC Weatherhead Z
A27-4x4 1/4" 7/16x20 1/4" 1.80" 9/16" 1AA4FJC4a 04Z-644
A27-4x6* 1/4" 9/16x18 3/8" 1.80" 11/16" - -
A27-6x6* 3/8" 9/16x18 3/8" 2.18" 11/16" 1AA6FJC6 06Z-646
A27-6x8 3/8" 3/4x16 1/2" 2.50" 7/8" - 06Z-648
A27-8x8 1/2" 3/4x16 1/2" 2.50" 7/8" 1AA8FJC8a 08Z-648
A27-8x10 1/2" 7/8x14 5/8" 2.75" 1" 1AA10FJC8 08Z-650
A27-10x10 5/8" 7/8x14 5/8" 2.75" 1" - -
A27-12x12* 3/4" 1-1/16x12 3/4" 3.73" 1-1/4" 1AA12FJC12 12Z-652
A27-16x16* 1" 1-5/16x12 1" 4.50" 1-1/2" 1AA16FJC16 16Z-656L

*JIC Seat and thread only

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
