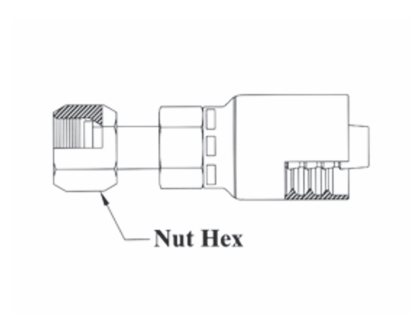

A30-12x16 Couplamatic A Series Coupling - O-Ring Face Seal (ORF) - Female Swivel - 3/4" Hose ID - 1-7/16x12 Thread

A30-12x16 by Couplamatic | A Series Coupling | 3/4" Hose ID x 1-7/16x12 Thread O-Ring Face Seal | ORF Female Swivel | Straight

Save $16.57 Save $16.57
$41.43
$41.43 - $41.43
$41.43
$24.86
$24.86 - $24.86
$24.86

Couplamatic Systems Inc.
A Series - O-Ring Face Seal (ORF) - Female Swivel
Specifications for Variant SKU: A30-12x16 Couplamatic
Series: A Series
Shape (Orientation): Straight
Ends Configuration: 1in Female O-Ring Face Seal, 3/4in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   2SK Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   JH Series  |   JH2 Series
Description:
  • A Series couplings can be crimped in virtually all adjustable crimp machines. Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification. Trivalent Zinc Plating.
Part Number Hose ID Thread Size Tube OD Nut Hex Cross Reference Part Numbers
Aeroquip TTC Weatherhead Z
A30-4x4 1/4" 9/16x18 1/4" 11/16" 1AA4FR4 04Z-S64
A30-4x6 1/4" 11/16x16 3/8" 13/16" 1AA6FR4 04Z-S66
A30-6x6 3/8" 11/16x16 3/8" 13/16" 1AA6FR6 06Z-S66
A30-6x8 3/8" 13/16x16 1/2" 15/16" 1AA8FR6 06Z-S68
A30-8x6 1/2" 11/16x16 3/8" 13/16" - 08Z-S66
A30-8x8 1/2" 13/16x16 1/2" 15/16" 1AA8FR8 08Z-S68
A30-8x10 1/2" 1x14 5/8" 1-1/8" 1AA10FR8 08Z-S70
A30-8x12 1/2" 1-3/16x12 3/4" 1-3/8" 1AA12FR8 08Z-S72
A30-10x10 5/8" 1x14 5/8" 1-1/8" 1AA10FR10 10Z-S70
A30-10x12 5/8" 1-3/16x12 3/4" 1-3/8" 1AA12FR10 10Z-S72
A30-12x12 3/4" 1-3/16x12 3/4" 1-3/8" 1AA12FR12 12Z-S72
A30-12x16 3/4" 1-7/16x12 1" 1-5/8" - 12Z-S76
A30-16x16 1" 1-7/16x12 1" 1-5/8" 1AA16FR16 16Z-S76
A30-20x20 1-1/4" 1-11/16x12 1-1/4" 1-7/8" 1AV20FR20 20Z-S80

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
