A30-6x8 Couplamatic A Series Coupling - O-Ring Face Seal (ORF) - Female Swivel - 3/8" Hose ID - 13/16x16 Thread

A30-6x8 by Couplamatic | A Series Coupling | 3/8" Hose ID x 13/16x16 Thread O-Ring Face Seal | ORF Female Swivel | Straight | Pack of 5

Save $25.85

$64.63

$64.63 - $64.63

$64.63

$38.78

$38.78 - $38.78

$38.78

Couplamatic Systems Inc.
A Series - O-Ring Face Seal (ORF) - Female Swivel

Package Quantity: 5 EA

Specifications for Variant SKU: A30-6x8 Couplamatic \| 5 \|
Series:	A Series
Shape (Orientation):	Straight
Ends Configuration:	1/2in Female O-Ring Face Seal, 3/8in Hose Barb
Material(s):	Steel
Compatible with the following Series:	56MB-1 Series \| 57MB-2 Series \| 56MB-2 Series \| HPI Series \| HPIII Series \| 2SN Series \| 2SK Series \| R16 Series \| DH16 Series \| DHEX16 Series \| R17 Series \| R17R Series \| WDH17 Series \| JH Series \| JH2 Series

Description:
A Series couplings can be crimped in virtually all adjustable crimp machines. Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification. Trivalent Zinc Plating.

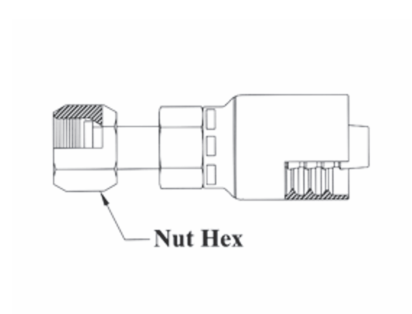

Part Number	Hose ID	Thread Size	Tube OD	Nut Hex	Cross Reference Part Numbers
Part Number	Hose ID	Thread Size	Tube OD	Nut Hex	Aeroquip TTC	Weatherhead Z
A30-4x4	1/4"	9/16x18	1/4"	11/16"	1AA4FR4	04Z-S64
A30-4x6	1/4"	11/16x16	3/8"	13/16"	1AA6FR4	04Z-S66
A30-6x6	3/8"	11/16x16	3/8"	13/16"	1AA6FR6	06Z-S66
A30-6x8	3/8"	13/16x16	1/2"	15/16"	1AA8FR6	06Z-S68
A30-8x6	1/2"	11/16x16	3/8"	13/16"	-	08Z-S66
A30-8x8	1/2"	13/16x16	1/2"	15/16"	1AA8FR8	08Z-S68
A30-8x10	1/2"	1x14	5/8"	1-1/8"	1AA10FR8	08Z-S70
A30-8x12	1/2"	1-3/16x12	3/4"	1-3/8"	1AA12FR8	08Z-S72
A30-10x10	5/8"	1x14	5/8"	1-1/8"	1AA10FR10	10Z-S70
A30-10x12	5/8"	1-3/16x12	3/4"	1-3/8"	1AA12FR10	10Z-S72
A30-12x12	3/4"	1-3/16x12	3/4"	1-3/8"	1AA12FR12	12Z-S72
A30-12x16	3/4"	1-7/16x12	1"	1-5/8"	-	12Z-S76
A30-16x16	1"	1-7/16x12	1"	1-5/8"	1AA16FR16	16Z-S76
A30-20x20	1-1/4"	1-11/16x12	1-1/4"	1-7/8"	1AV20FR20	20Z-S80

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
