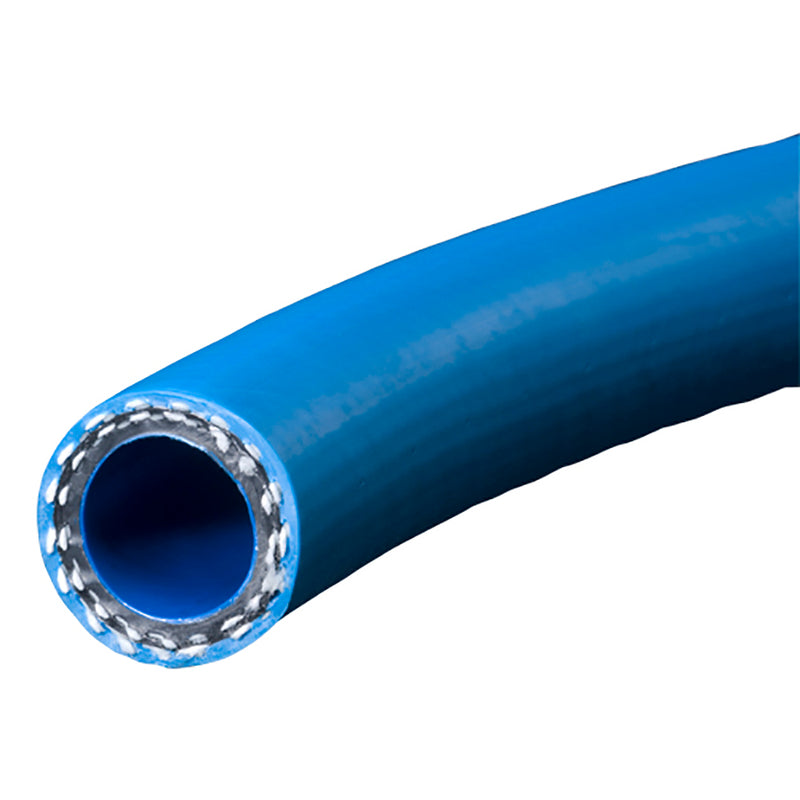

A4086-08X100 Kuri-Tec by Kuriyama | Truespray™ | A4086 Series | High Pressure Polyethylene Rubber Blend Reinforced Chemical Spray & Transfer Hose | 1/2" ID | 0.840" OD | Blue | 100ft Length

Save $54.77

$321.77

$321.77 - $321.77

$321.77

$267.00

$267.00 - $267.00

$267.00

Kuri Tec® by Kuriyama
Truespray™ | A4086 Series | High Pressure Polyethylene Rubber Blend Reinforced Chemical Spray & Transfer Hose

A premium chemical spray and transfer hose for applications requiring greater chemical-resistance.

Excellent for high pressure tree and orchard spraying, as well as paint, solvent and chemical transfer.

Package Quantity: 100 Foot

Specifications for Variant SKU: A4086-08X100 Kuriyama \| 100 \|
Brand:	Truespray, Kuri Tec
Series:	A4086 Series
Hose Color(s):	Blue
Internal Diameter:	0.50in - 1/2in
Outer Diameter:	0.840in
Tubing Construction:	LLDPE/Rubber Blend
Cover Construction:	Rubber Blend
Applicable Specs & Approvals:	RoHS Compliant
Special Properties:	Pin Pricked Hose Cover

SPECIFICATIONS

Other Features:
Applications:	For use in applications where additional chemical resistance is required. Agricultural fertilizer, pesticide and herbicide spraying. High pressure tree, orchard and vineyard spraying. Concrete curing and spraying. Paint and solvent transfer. Chemical transfer.

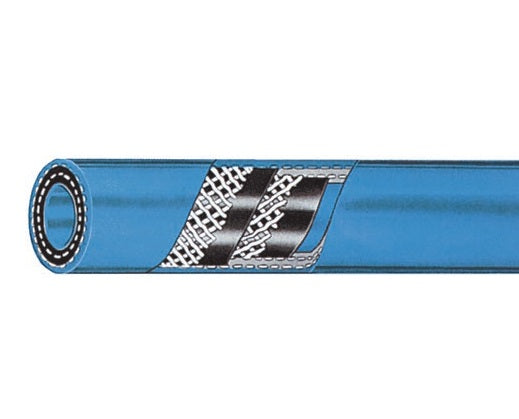

Tube:	Co-extruded blue LLDPE/rubber blend.	Reinforcement:	High tensile strength yarn - two-pass spiral construction.
Cover:	Rubber blend compound. Pin-pricked.	Service Temperature Range:	-40°F (-40°C) to +130°F (+54°C)
Specifications:	Phthalate Free RoHS
Excellent chemical-resistance. Extremely light weight. Excellent low temperature properties. Pin-pricked cover vents vapor - helps prevent ballooning. Silicone-free. RoHS compliant. Phthalate Free! Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures. Note: Use of hydraulic or reusable-type fittings are not recommended for coupling Kuri Tec® hose products. Hose claims involving use of these fittings will be disallowed.

A4083 Series \| Black
Part Number 100ft	Part Number 200ft	Part Number 300ft	Nominal ID		Nominal OD		Max. Working Pressure
Part Number 100ft	Part Number 200ft	Part Number 300ft	in	mm	in	mm	@70°F (20°C)	@122°F (66°C)
A4083-06X100	-	A4083-06X300	3/8"	9.5mm	0.688"	17.5mm	800 PSI	300 PSI
A4083-08X100	-	A4083-08X300	1/2"	12.7mm	0.840"	21.3mm	800 PSI	300 PSI
A4083-12X100	-	A4083-12X300	3/4"	19.1mm	1.140"	29.0mm	800 PSI	250 PSI
A4083-16X100	A4083-16X200	-	1"	25.4mm	1.400"	35.6mm	400 PSI	125 PSI

A4086 Series \| Blue
Part Number 100ft	Part Number 200ft	Part Number 300ft	Nominal ID		Nominal OD		Max. Working Pressure
Part Number 100ft	Part Number 200ft	Part Number 300ft	in	mm	in	mm	@70°F (20°C)	@122°F (66°C)
A4086-06X100	-	A4086-06X300	3/8"	9.5mm	0.688"	17.5mm	800 PSI	300 PSI
A4086-08X100	-	A4086-08X300	1/2"	12.7mm	0.840"	21.3mm	800 PSI	300 PSI
A4086-12X100	-	A4086-12X300	3/4"	19.1mm	1.140"	29.0mm	800 PSI	250 PSI
A4086-16X100	A4086-16X200	-	1"	25.4mm	1.400"	35.6mm	400 PSI	125 PSI

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
