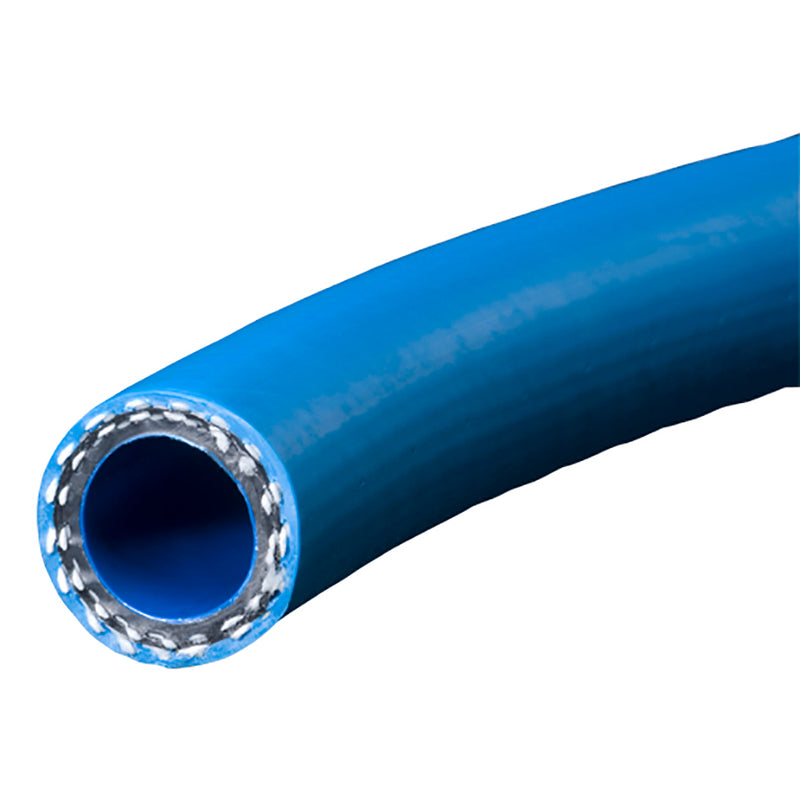

A4086-12X100 Kuri-Tec by Kuriyama | Truespray™ | A4086 Series | High Pressure Polyethylene Rubber Blend Reinforced Chemical Spray & Transfer Hose | 3/4" ID | 1.140" OD | Blue | 100ft Length
A4086-12X100 Kuri-Tec by Kuriyama | Truespray™ | A4086 Series | High Pressure Polyethylene Rubber Blend Reinforced Chemical Spray & Transfer Hose | 3/4" ID | 1.140" OD | Blue | 100ft Length
A4086-12X100 Kuri-Tec by Kuriyama | Truespray™ | A4086 Series | High Pressure Polyethylene Rubber Blend Reinforced Chemical Spray & Transfer Hose | 3/4" ID | 1.140" OD | Blue | 100ft Length

A4086-12X100 Kuri-Tec by Kuriyama | Truespray™ | A4086 Series | High Pressure Polyethylene Rubber Blend Reinforced Chemical Spray & Transfer Hose | 3/4" ID | 1.140" OD | Blue | 100ft Length

Save $84.25 Save $84.25
$515.65
$515.65 - $515.65
$515.65
$431.40
$431.40 - $431.40
$431.40

Kuri Tec® by Kuriyama
Truespray™ | A4086 Series | High Pressure Polyethylene Rubber Blend Reinforced Chemical Spray & Transfer Hose

A premium chemical spray and transfer hose for applications requiring greater chemical-resistance.

Excellent for high pressure tree and orchard spraying, as well as paint, solvent and chemical transfer.

Package Quantity: 100 Foot

Specifications for Variant SKU: A4086-12X100 Kuriyama | 100 |
Brand: Truespray, Kuri Tec
Series: A4086 Series
Hose Color(s): Blue
Internal Diameter: 0.75in - 3/4in
Outer Diameter: 1.140in
Tubing Construction: LLDPE/Rubber Blend
Cover Construction: Rubber Blend
Applicable Specs & Approvals: RoHS Compliant
Special Properties: Pin Pricked Hose Cover

SPECIFICATIONS

Applications: For use in applications where additional chemical resistance is required.
Agricultural fertilizer, pesticide and herbicide spraying.
High pressure tree, orchard and vineyard spraying.
Concrete curing and spraying.
Paint and solvent transfer.
Chemical transfer.

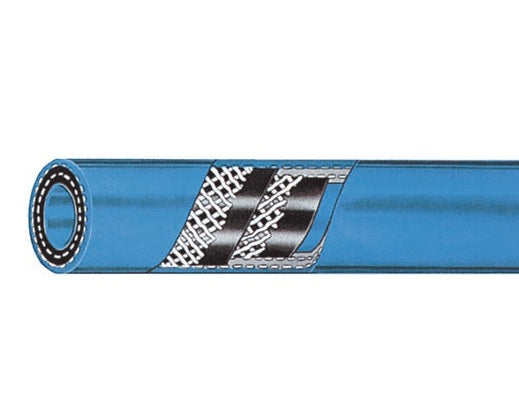

Tube: Co-extruded blue LLDPE/rubber blend. Reinforcement: High tensile strength yarn - two-pass spiral construction.
Cover: Rubber blend compound. Pin-pricked. Service Temperature Range: -40°F (-40°C) to +130°F (+54°C)
Specifications: Phthalate Free
RoHS
Other Features:
  • Excellent chemical-resistance.
  • Extremely light weight.
  • Excellent low temperature properties.
  • Pin-pricked cover vents vapor - helps prevent ballooning.
  • Silicone-free.
  • RoHS compliant.
  • Phthalate Free!
  • Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.
  • Note: Use of hydraulic or reusable-type fittings are not recommended for coupling Kuri Tec® hose products. Hose claims involving use of these fittings will be disallowed.
A4083 Series | Black
Part Number
100ft		 Part Number
200ft		 Part Number
300ft		 Nominal ID Nominal OD Max. Working
Pressure
in mm in mm @70°F
(20°C)		 @122°F
(66°C)
A4083-06X100 - A4083-06X300 3/8" 9.5mm 0.688" 17.5mm 800 PSI 300 PSI
A4083-08X100 - A4083-08X300 1/2" 12.7mm 0.840" 21.3mm 800 PSI 300 PSI
A4083-12X100 - A4083-12X300 3/4" 19.1mm 1.140" 29.0mm 800 PSI 250 PSI
A4083-16X100 A4083-16X200 - 1" 25.4mm 1.400" 35.6mm 400 PSI 125 PSI
A4086 Series | Blue
Part Number
100ft		 Part Number
200ft		 Part Number
300ft		 Nominal ID Nominal OD Max. Working
Pressure
in mm in mm @70°F
(20°C)		 @122°F
(66°C)
A4086-06X100 - A4086-06X300 3/8" 9.5mm 0.688" 17.5mm 800 PSI 300 PSI
A4086-08X100 - A4086-08X300 1/2" 12.7mm 0.840" 21.3mm 800 PSI 300 PSI
A4086-12X100 - A4086-12X300 3/4" 19.1mm 1.140" 29.0mm 800 PSI 250 PSI
A4086-16X100 A4086-16X200 - 1" 25.4mm 1.400" 35.6mm 400 PSI 125 PSI

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
