A44-6x10 Couplamatic A Series Coupling - DIN Light Universal Seat - Female Swivel 90° Bend - 3/8" Hose ID - M16x1.5 Thread

A44-6x10 by Couplamatic | A Series Coupling | 3/8" Hose ID x M16x1.5 Thread DIN Light Universal Seat Female Swivel | 90° Elbow

Save $11.81 Save $11.81
$29.53
$29.53 - $29.53
$29.53
$17.72
$17.72 - $17.72
$17.72

Couplamatic Systems Inc.
A Series - DIN Light Universal Seat - Female Swivel 90° Bend
Specifications for Variant SKU: A44-6x10 Couplamatic
Series: A Series
Shape (Orientation): 90 Degree
Ends Configuration: L10 Female DIN, 3/8in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   2SK Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   JH Series  |   JH2 Series
Description:
  • A Series couplings can be crimped in virtually all adjustable crimp machines. Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification. Trivalent Zinc Plating.

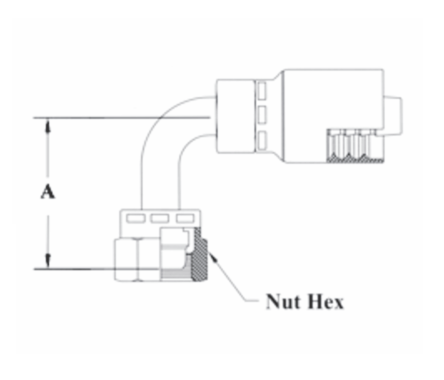

Part Number Hose ID Tube Size Thread Size A - Drop Inches Nut Hex Cross Reference Part Numbers
Aeroquip TTC Weatherhead Z
A44-4x8 1/4" 8mm M14x1.5 1.48" 11/16" 1A6DLB4 04Z-58D
A44-6x10 3/8" 10mm M16x1.5 1.65" 3/4" 1A8DLB6 06Z-60D
A44-6x12 3/8" 12mm M18x1.5 1.65" 7/8" 1A10DLB6 06Z-62D
A44-8x15 1/2" 15mm M22x1.5 1.93" 1-1/16" 1A12DLB8 08Z-65D
A44-10x18 5/8" 18mm M26x1.5 2.31" 1-1/4" - 10Z-68D

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
