A44-8x15 Couplamatic A Series Coupling - DIN Light Universal Seat - Female Swivel 90° Bend - 1/2" Hose ID - M22x1.5 Thread

A44-8x15 by Couplamatic | A Series Coupling | 1/2" Hose ID x M22x1.5 Thread DIN Light Universal Seat Female Swivel | 90° Elbow

Name: A44-8x15 by Couplamatic | A Series Coupling | 1/2" Hose ID x M22x1.5 Thread DIN Light Universal Seat Female Swivel | 90° Elbow
Brand: Couplamatic
SKU: A44-8x15 Couplamatic
Price: 21.31 USD
Availability: InStock

Save $2.66

$23.97

$23.97 - $23.97

$23.97

$21.31

$21.31 - $21.31

$21.31

Couplamatic Systems Inc.
A Series - DIN Light Universal Seat - Female Swivel 90° Bend

Quantity

Specifications for Variant SKU: A44-8x15 Couplamatic
Series:	A Series
Shape (Orientation):	90 Degree
Ends Configuration:	L15 Female DIN, 1/2in Hose Barb
Material(s):	Steel
Compatible with the following Series:	56MB-1 Series \| 57MB-2 Series \| 56MB-2 Series \| HPI Series \| HPIII Series \| 2SN Series \| 2SK Series \| R16 Series \| DH16 Series \| DHEX16 Series \| R17 Series \| R17R Series \| WDH17 Series \| JH Series \| JH2 Series

Description:
A Series couplings can be crimped in virtually all adjustable crimp machines. Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification. Trivalent Zinc Plating.

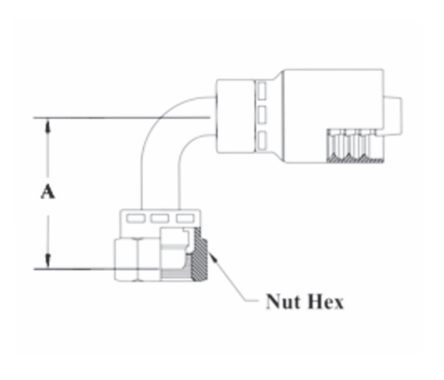

Part Number	Hose ID	Tube Size	Thread Size	A - Drop Inches	Nut Hex	Cross Reference Part Numbers
Part Number	Hose ID	Tube Size	Thread Size	A - Drop Inches	Nut Hex	Aeroquip TTC	Weatherhead Z
A44-4x8	1/4"	8mm	M14x1.5	1.48"	11/16"	1A6DLB4	04Z-58D
A44-6x10	3/8"	10mm	M16x1.5	1.65"	3/4"	1A8DLB6	06Z-60D
A44-6x12	3/8"	12mm	M18x1.5	1.65"	7/8"	1A10DLB6	06Z-62D
A44-8x15	1/2"	15mm	M22x1.5	1.93"	1-1/16"	1A12DLB8	08Z-65D
A44-10x18	5/8"	18mm	M26x1.5	2.31"	1-1/4"	-	10Z-68D

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
