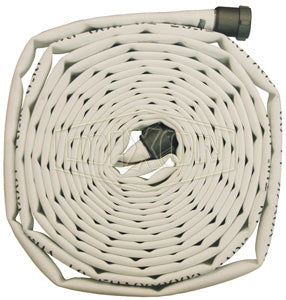

A515-50RAS Dixon 500# Single Jacket All Polyester Fire Hose - Coupled - Fem. x Male NPSH Expansion Ring Couplings (Aluminum) - 1-1/2" Hose Size - 1-3/4" Bowl Size - 50ft Length

A515-50RAS Dixon 500# Single Jacket All Polyester Fire Hose - Coupled - Fem. x Male NPSH Expansion Ring Couplings (Aluminum) - 1-1/2" Hose Size - 1-3/4" Bowl Size - 50ft Length

Save $24.64 Save $24.64
$221.91
$221.91 - $221.91
$221.91
$197.27
$197.27 - $197.27
$197.27

Dixon Fire Fittings
Fire Hose - 500# Single Jacket All Polyester Fire Hose - Coupled
Specifications for Variant SKU: A515-50RAS Dixon
Series: Fire Hose
Hose Color(s): White/Off-White
Internal Diameter: 1.5in
Tubing Construction: EPDM
Cover Construction: Polyester Textile Braid
Ends Configuration: 1-1/2in Female NPSH, 1-1/2in Male NPSH
Features:
  • Outer construction: single jacket, all polyester.
  • Tube construction: EPDM rubber lining.
  • Proof pressure: 500 PSI.
  • Service test pressure: 250 PSI at ambient temperature 70°F (21°C).
  • Working pressure: 225 PSI at ambient temperature 70°F (21°C).
Part Number Size Bowl Length Weight
(Lbs.)
Coupled with Female x Male NST(NH) Aluminum Expansion Ring Couplings - Rocker Lug
A510-50RAF 1" 1-1/4" 50 ft 5.6000
A510100RAF 1" 1-1/4" 100 ft 11.5250
A515-25RAF 1-1/2" 1-3/4" 25 ft 4.7500
A515-50RAF 1-1/2" 1-3/4" 50 ft 9.9500
A515-75RAF 1-1/2" 1-3/4" 75 ft 11.0000
A515100RAF 1-1/2" 1-3/4" 100 ft 23.5000
A525-25RAF 2-1/2" 2-13/16" 25 ft 8.4000
A525-50RAF 2-1/2" 2-13/16" 50 ft 19.7500
A525-75RAF 2-1/2" 2-13/16" 75 ft 36.0300
A525100RAF 2-1/2" 2-13/16" 100 ft 29.5000
Coupled with Female x Male NST(NH) Brass Expansion Ring Couplings - Rocker Lug
A515-50RBF 1-1/2" 1-3/4" 50 ft 11.0000
A515100RBF 1-1/2" 1-3/4" 100 ft 16.8500
A525-50RBF 2-1/2" 2-13/16" 50 ft 16.5000
A525100RBF 2-1/2" 2-13/16" 100 ft 31.0000
Coupled with Female x Male NPSH Aluminum Expansion Ring Couplings - Rocker Lug
A510-50RAS 1" 1-1/4" 50 ft 6.0000
A510100RAS 1" 1-1/4" 100 ft 11.0000
A515-25RAS 1-1/2" 1-3/4" 25 ft 4.7500
A515-50RAS 1-1/2" 1-3/4" 50 ft 11.9500
A515-75RAS 1-1/2" 1-3/4" 75 ft 18.4100
A515100RAS 1-1/2" 1-3/4" 100 ft 16.0000
A525-25RAS 2-1/2" 2-13/16" 25 ft 11.5500
A525-50RAS 2-1/2" 2-13/16" 50 ft 22.1500
A525100RAS 2-1/2" 2-13/16" 100 ft 25.0000
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
