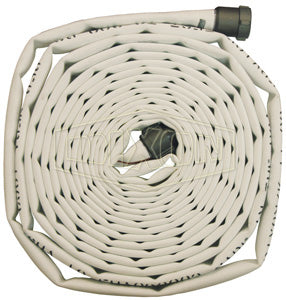

A525-50RAF Dixon 500# Single Jacket All Polyester Fire Hose - Coupled - Fem. x Male NST(NH) Expansion Ring Couplings (Aluminum) - 2-1/2" Hose Size - 2-13/16" Bowl Size - 50ft Length

A525-50RAF Dixon 500# Single Jacket All Polyester Fire Hose - Coupled - Fem. x Male NST(NH) Expansion Ring Couplings (Aluminum) - 2-1/2" Hose Size - 2-13/16" Bowl Size - 50ft Length

Save $35.83 Save $35.83
$322.44
$322.44 - $322.44
$322.44
$286.61
$286.61 - $286.61
$286.61

Dixon Fire Fittings
Fire Hose - 500# Single Jacket All Polyester Fire Hose - Coupled
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: A525-50RAF Dixon
Series: Fire Hose
Hose Color(s): White/Off-White
Internal Diameter: 2.5in
Tubing Construction: EPDM
Cover Construction: Polyester Textile Braid
Ends Configuration: 2-1/2in Female NST, 2-1/2in Male NST
Features:
  • Outer construction: single jacket, all polyester.
  • Tube construction: EPDM rubber lining.
  • Proof pressure: 500 PSI.
  • Service test pressure: 250 PSI at ambient temperature 70°F (21°C).
  • Working pressure: 225 PSI at ambient temperature 70°F (21°C).
Part Number Size Bowl Length Weight
(Lbs.)
Coupled with Female x Male NST(NH) Aluminum Expansion Ring Couplings - Rocker Lug
A510-50RAF 1" 1-1/4" 50 ft 5.6000
A510100RAF 1" 1-1/4" 100 ft 11.5250
A515-25RAF 1-1/2" 1-3/4" 25 ft 4.7500
A515-50RAF 1-1/2" 1-3/4" 50 ft 9.9500
A515-75RAF 1-1/2" 1-3/4" 75 ft 11.0000
A515100RAF 1-1/2" 1-3/4" 100 ft 23.5000
A525-25RAF 2-1/2" 2-13/16" 25 ft 8.4000
A525-50RAF 2-1/2" 2-13/16" 50 ft 19.7500
A525-75RAF 2-1/2" 2-13/16" 75 ft 36.0300
A525100RAF 2-1/2" 2-13/16" 100 ft 29.5000
Coupled with Female x Male NST(NH) Brass Expansion Ring Couplings - Rocker Lug
A515-50RBF 1-1/2" 1-3/4" 50 ft 11.0000
A515100RBF 1-1/2" 1-3/4" 100 ft 16.8500
A525-50RBF 2-1/2" 2-13/16" 50 ft 16.5000
A525100RBF 2-1/2" 2-13/16" 100 ft 31.0000
Coupled with Female x Male NPSH Aluminum Expansion Ring Couplings - Rocker Lug
A510-50RAS 1" 1-1/4" 50 ft 6.0000
A510100RAS 1" 1-1/4" 100 ft 11.0000
A515-25RAS 1-1/2" 1-3/4" 25 ft 4.7500
A515-50RAS 1-1/2" 1-3/4" 50 ft 11.9500
A515-75RAS 1-1/2" 1-3/4" 75 ft 18.4100
A515100RAS 1-1/2" 1-3/4" 100 ft 16.0000
A525-25RAS 2-1/2" 2-13/16" 25 ft 11.5500
A525-50RAS 2-1/2" 2-13/16" 50 ft 22.1500
A525100RAS 2-1/2" 2-13/16" 100 ft 25.0000
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
