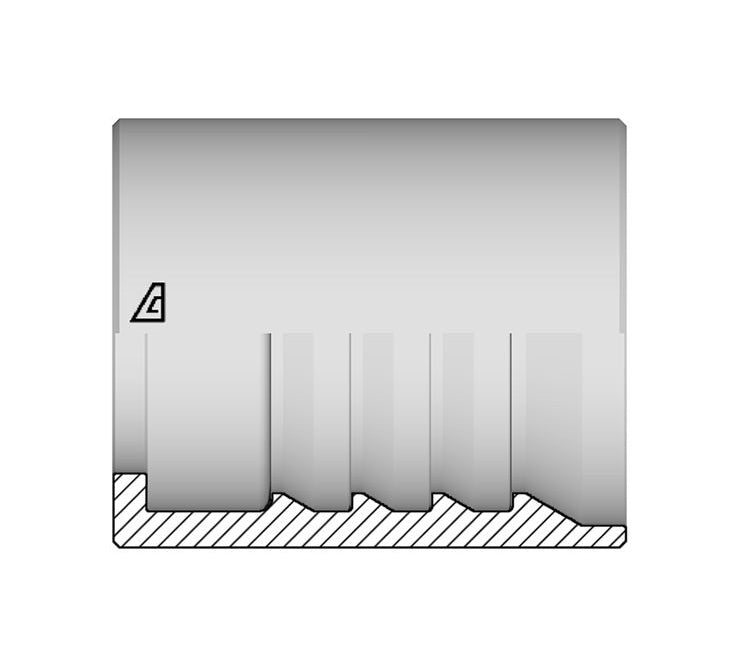

AS4-04 Alfagomma by Kuriyama | A Series / AS4 Series | Two-Piece Skive Ferrule | -04 Hose Dash Size | 1/4" Hose ID | Steel

AS4-04 Alfagomma by Kuriyama | A Series / AS4 Series | Two-Piece Skive Ferrule | -04 Hose Dash Size | 1/4" Hose ID | Steel

Save $0.68 Save $0.68
$2.37
$2.37 - $2.37
$2.37
$1.69
$1.69 - $1.69
$1.69

Kuriyama of America Inc.
Alfagomma | A Series / AS4 Series | Two-Piece Skive Ferrule
Specifications for Variant SKU: AS4-04 Kuriyama
Brand: Alfagomma
Series: A Series, AS4 Series
Material(s): Steel
Compatible with the following Series: ABT4K Series  |   ABT5K Series  |   ABT6K Series
About A Series / AS4 Series Ferrules:
  • Two piece skive ferrule for use with:
    • "A" insert on spiral reinforced hoses Alfabiotech ABT4K, ABT5K, ABT6K.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Steel
Part Number		 Stainless Steel
Part Number		 Dash
Size		 Hose ID Size B
OD		 L
Length		 Weight
(in.) (mm) (mm) (mm) lbs/each
AS4-04 - 04 1/4" 6.4mm 22mm 26.3mm 0.07 lbs
AS4-06 - 06 3/8" 9.5mm 25mm 28.5mm 0.09 lbs
AS4-08 AS4-08-SS 08 1/2" 12.7mm 29mm 34.7mm 0.14 lbs
AS4-10 - 10 5/8" 15.9mm 32mm 37.5mm 0.17 lbs
AS4-12 - 12 3/4" 19.0mm 36mm 41.5mm 0.21 lbs
AS4-16 - 16 1" 25.4mm 45mm 47.7mm 0.37 lbs
AS4-20 - 20 1-1/4" 31.8mm 58mm 54.6mm 0.88 lbs
AS4-24 - 24 1-1/2" 38.1mm 67mm 61.0mm 1.08 lbs
AS4-32 - 32 2" 50.8mm 82mm 75.1mm 1.76 lbs
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
